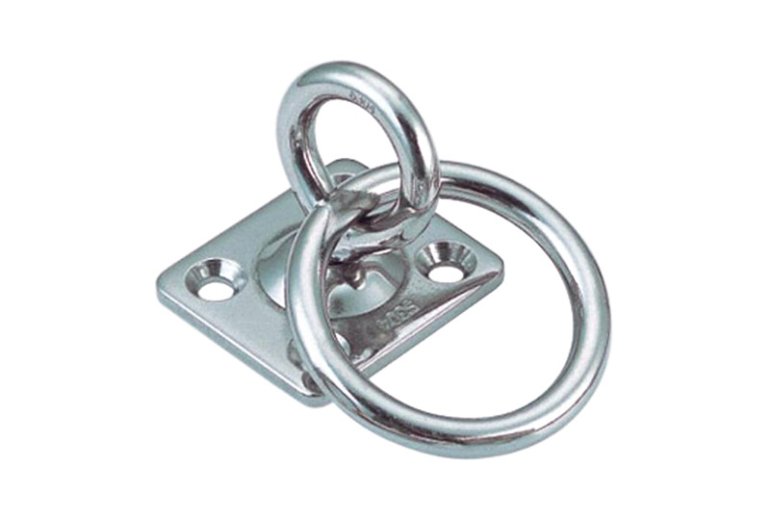

Stainless Steel 304 Square Swivel Pad Eye Plate W Ring Welded Formed Marine Boat Rigging.

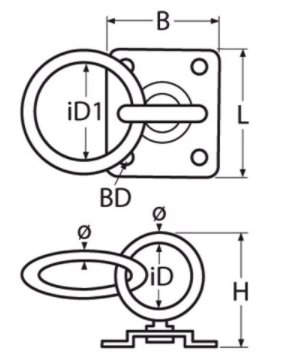

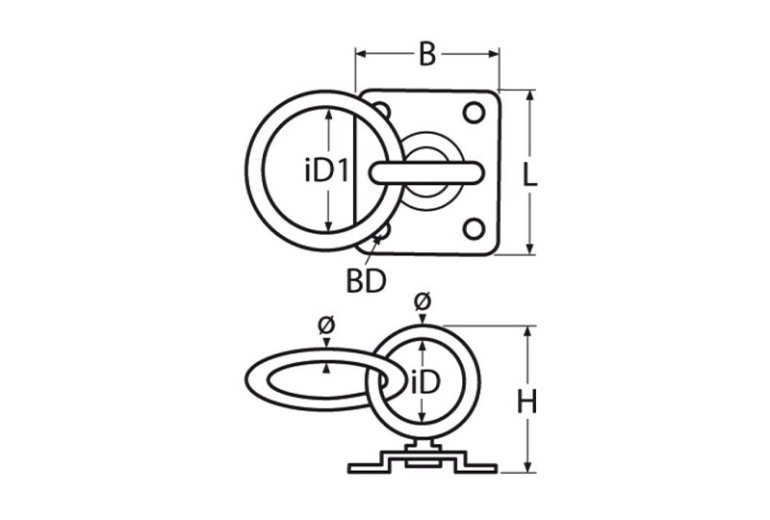

| GS68397 | Square plate with swivel eye and ring | ||||||||
 | Item-No. | ø | ø1 | L | B | H | iD | iD1 | BD |
| GS6839745 | 5 | 5 | 35 | 35 | 33 | 15 | 30 | 4.4 | |
| GS6839746 | 6 | 6 | 40 | 40 | 40 | 18 | 36 | 4.4 | |
| GS6839748 | 8 | 8 | 50 | 50 | 44 | 19 | 47 | 6 | |
