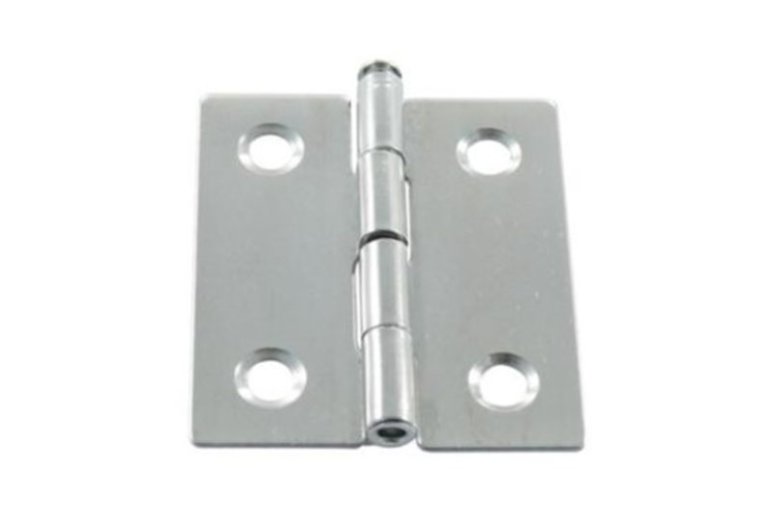

GS 6729 High Quality Stainless Steel 316 Stamping hinge,Brushed polished.

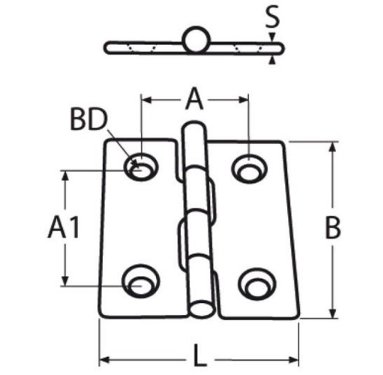

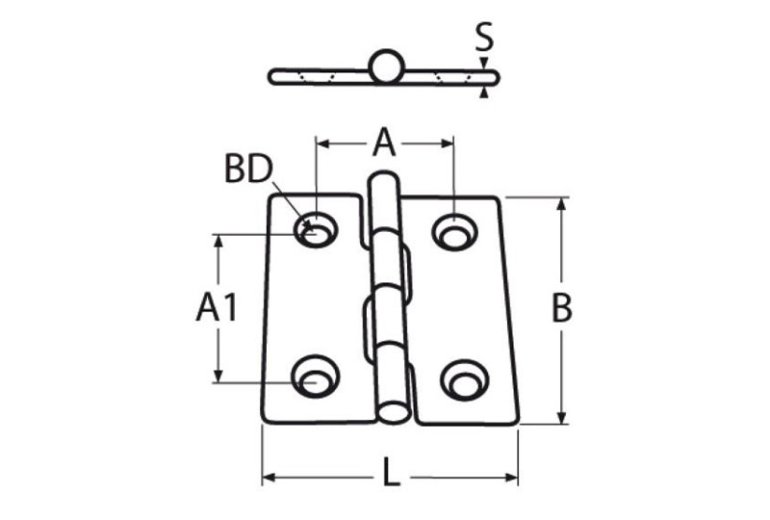

| GS6729 | Stamping hinge,Brushed polished | ||||||
 | Item-No. | L | B | A | A1 | S | BD |
| GS672922530 | 25 | 30 | 14.9 | 20.3 | 0.8 | 3 | |
| GS672928530 | 28.5 | 30 | 19.8 | 20.3 | 0.8 | 3 | |
| GS672923540 | 35 | 40 | 21.5 | 26.7 | 0.8 | 4 | |
| GS672924040 | 40 | 40 | 22.5 | 27.1 | 0.8 | 4 | |
