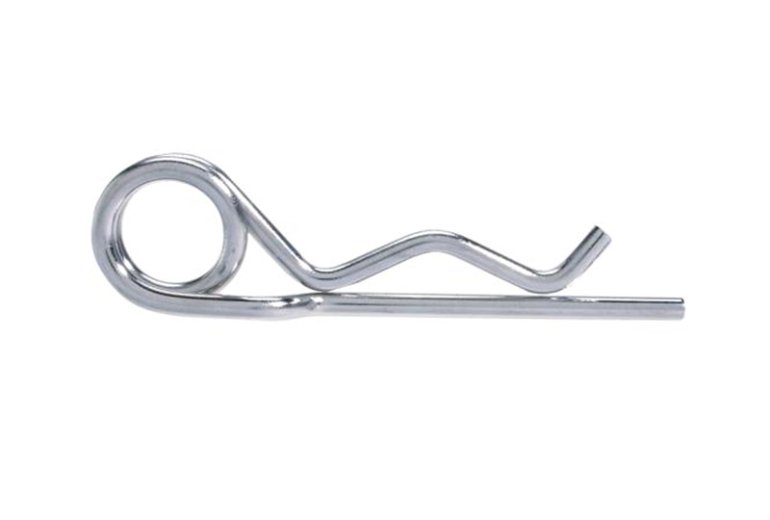

High Quality 316 Stainless Steel Spring cotter similar to DIN 11024.
| GS68431 | Spring cotter similar to DIN 11024 | |||||

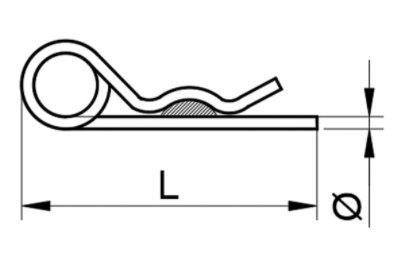

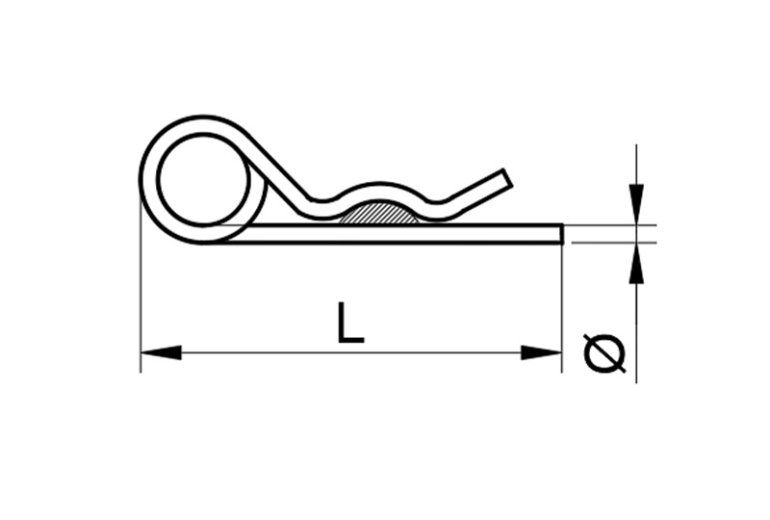

 | Item-No. | ø | L | L1 | iD | K |
| GS68431425 | 2.25 | 54 | 42 | 20 | 9-11 | |
| GS68431432 | 2.8 | 61 | 48 | 20 | 11-14 | |
| GS68431440 | 3.6 | 78 | 64 | 20 | 14-20 | |
| GS68431450 | 4.5 | 97 | 80 | 25 | 20-26 | |
| GS68431463 | 5.6 | 115 | 97 | 25 | 26-34 | |
| GS68431470 | 6.3 | 146 | 125 | 30 | 34-45 | |
| GS68431480 | 7 | 169 | 150 | 30 | 45-56 | |
