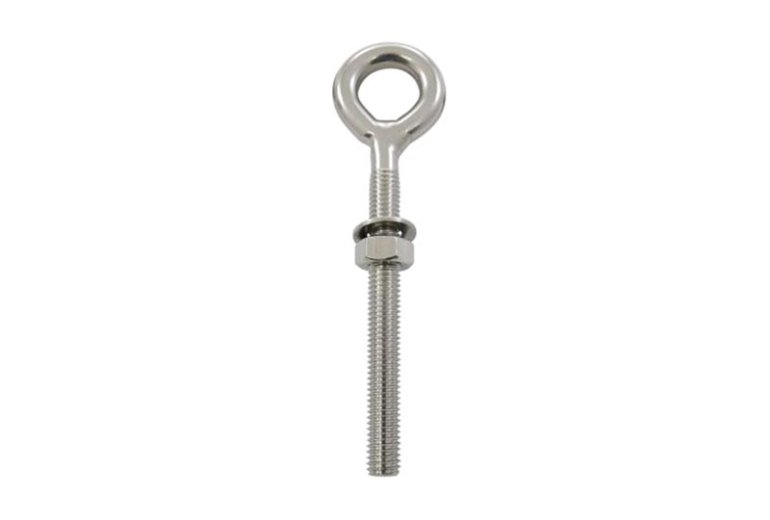

Rigging Hardware High Polished 316 Stainless Steel Eye bolt with metric thread.

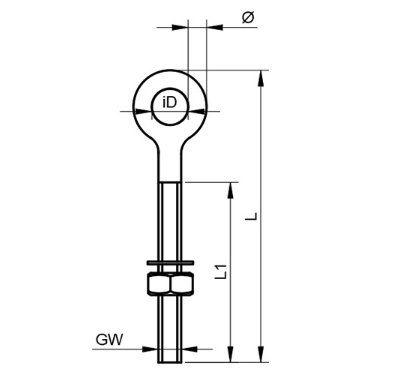

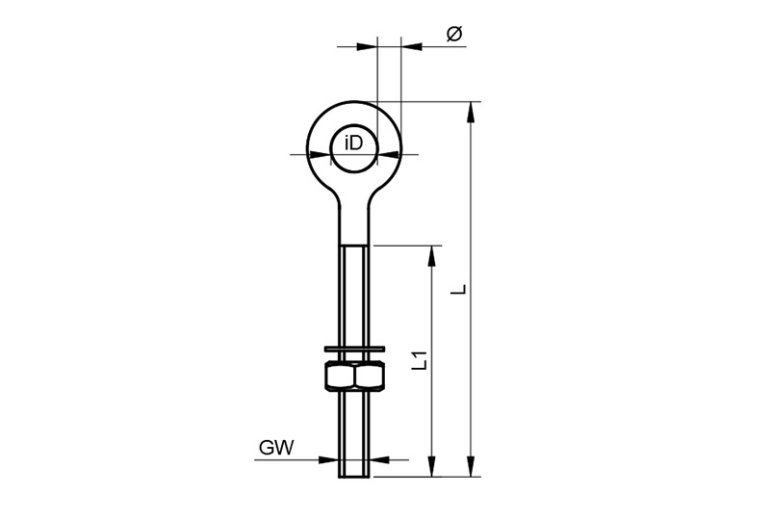

| GS6815020 | Eye bolt with metric thread | ||||||
 | Item-No. | GW | L | L1 | iD | ø | BL KG |
| GS68.1502E+11 | M6 | 60 | 30 | 13 | 6 | 770 | |
| GS68.1502E+11 | M6 | 80 | 50 | 13 | 6 | 770 | |
| GS68.1502E+11 | M6 | 100 | 74 | 13 | 6 | 770 | |
| GS68.1502E+11 | M8 | 100 | 62 | 16 | 8 | 1390 | |
| GS68.1502E+11 | M8 | 110 | 72 | 16 | 8 | 1390 | |
| GS68.1502E+11 | M8 | 130 | 92 | 16 | 8 | 1390 | |
| GS68.1502E+11 | M10 | 100 | 52 | 22 | 10 | 2180 | |
| GS68.1502E+11 | M10 | 150 | 90 | 22 | 10 | 2180 | |
| GS68.1502E+11 | M12 | 165 | 90 | 25 | 12 | 3200 | |
| GS68.1502E+11 | M12 | 185 | 110 | 25 | 12 | 3200 | |
