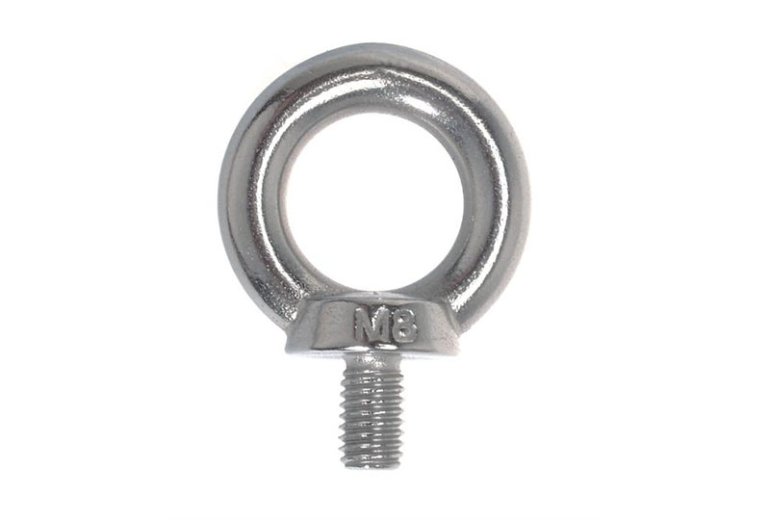

Rigging Hardware Eyenut 316 Stainless Steel Lifting eye bolt cast similar to DIN 580.
| GS68272 | Lifting eye bolt cast similar to DIN 580 | ||||||

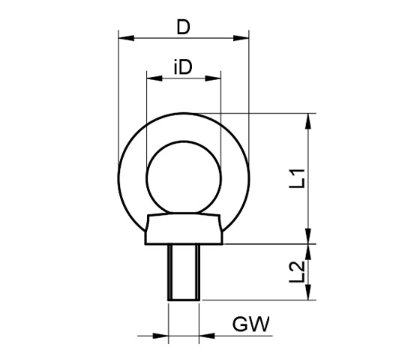

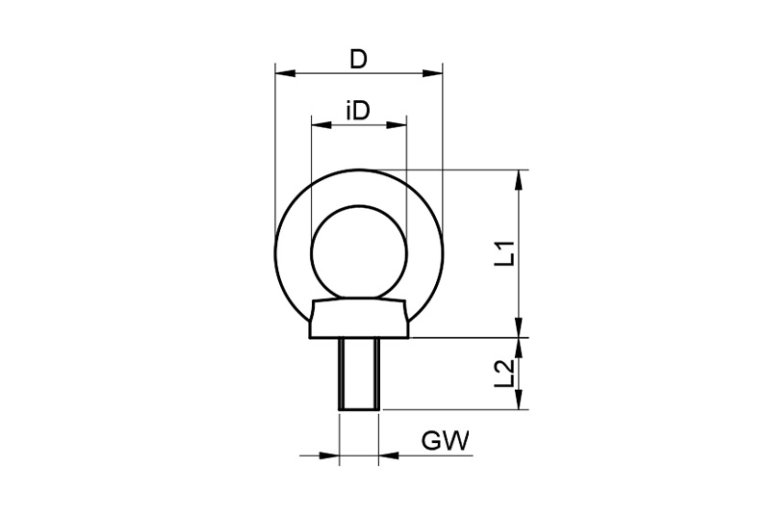

 | Item-No. A2 | Item-no. A4 | GW | iD | D | L1 | L2 |
| GS68272203 | 8272403 | M3 | 7.5 | 13.5 | 13.8 | 9 | |
| GS68272204 | 8272404 | M4 | 10 | 18 | 19 | 10 | |
| GS68272205 | 8272405 | M5 | 12.5 | 22.5 | 23 | 11 | |
| GS68272206 | 8272406 | M6 | 16 | 28 | 28 | 11 | |
| GS68272208 | 8272408 | M8 | 20 | 36 | 33 | 13 | |
| GS68272210 | 8272410 | M10 | 25 | 45 | 42 | 17 | |
| GS68272212 | 8272412 | M12 | 30 | 54 | 51 | 21 | |
| GS68272216 | 8272416 | M16 | 35 | 63 | 60 | 27 | |
| GS68272220 | 8272420 | M20 | 40 | 72 | 69 | 30 | |
