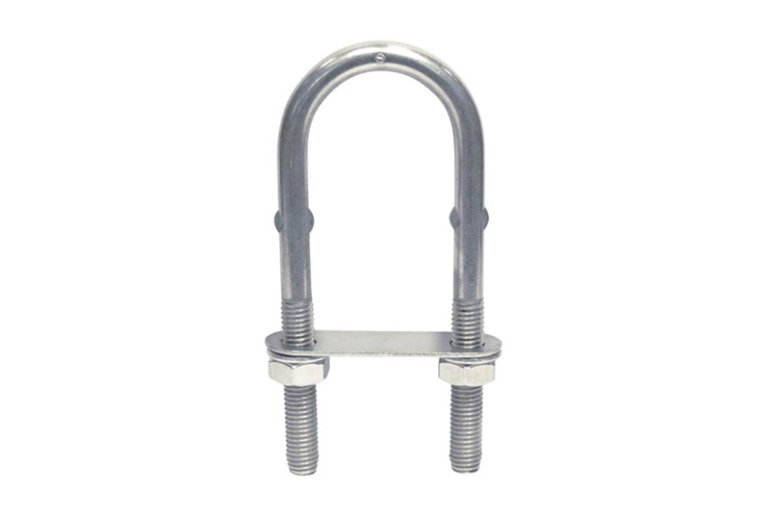

Stainless Steel 316 Marine U-bolt with counter plate Rigging Ship Yacht Boat Hardware.

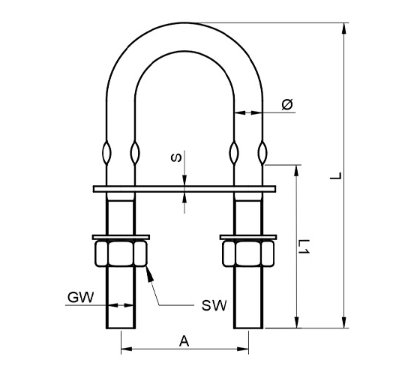

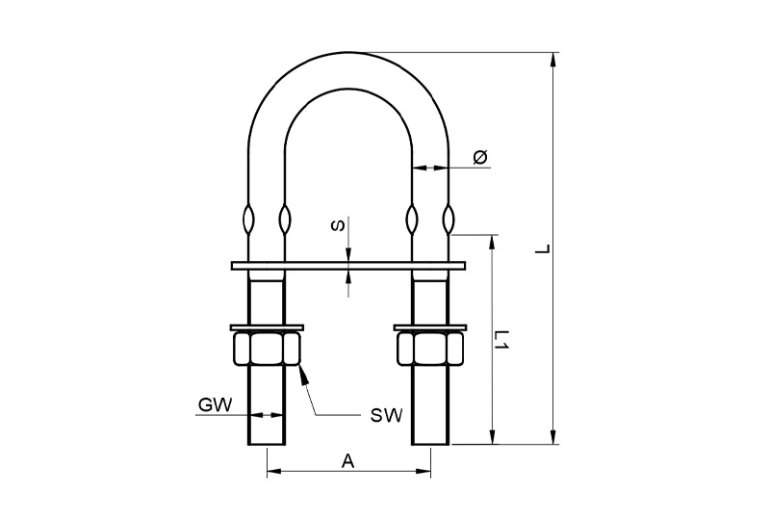

| GS68230 | U-bolt with counter plate | |||||||
 | Item-No. | GW | ø | L | L1 | A | S | Drive |
| GS68230204064 | M4 | 3.5 | 64 | 35 | 30 | 2 | SW7 | |
| GS68230205080 | M5 | 4.4 | 80 | 47 | 35 | 2 | SW8 | |
| GS68230206090 | M6 | 5.3 | 90 | 50 | 35 | 2 | SW10 | |
| GS68230208080 | M8 | 7.1 | 80 | 43 | 35 | 2 | SW13 | |
| GS68230208100 | M8 | 7.1 | 100 | 57 | 35 | 2 | SW13 | |
| GS68230210090 | M10 | 9 | 90 | 47 | 50 | 2 | SW17 | |
| GS68230210130 | M10 | 9 | 130 | 67 | 50 | 2 | SW17 | |
| GS68230212150 | M12 | 10.8 | 150 | 78 | 60 | 2 | SW19 | |
