High Quality 316 Stainless Steel Screw eye with metric thread.

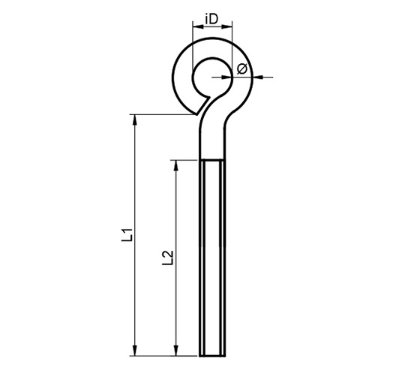

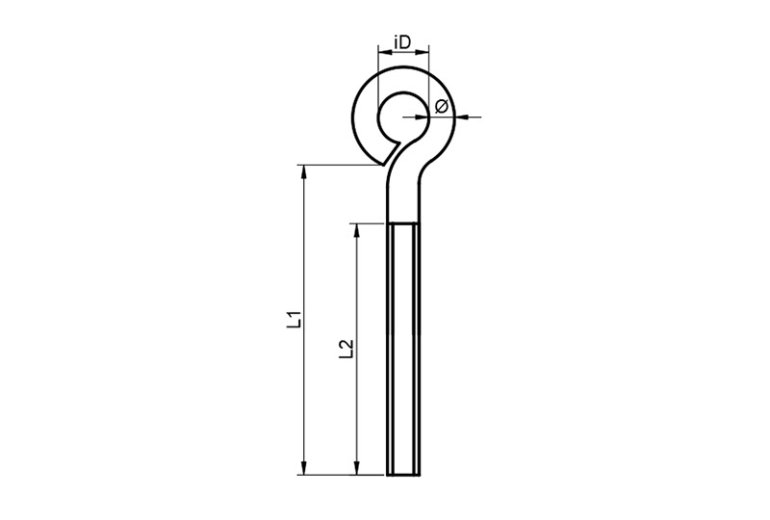

| GS68473 | Screw eye with metric thread | |||||
 | Item-No. | GW | L1 | L2 | iD | ø |
| GS6847320410 | M4 | 10 | 9 | 6 | 3.5 | |
| GS6847320420 | M4 | 20 | 18 | 6 | 3.5 | |
| GS6847320430 | M4 | 30 | 27 | 6 | 3.5 | |
| GS6847320440 | M4 | 40 | 37 | 6 | 3.5 | |
| GS6847320520 | M5 | 20 | 18 | 8 | 4.4 | |
| GS6847320530 | M5 | 30 | 27 | 8 | 4.4 | |
| GS6847320540 | M5 | 40 | 37 | 8 | 4.4 | |
| GS6847320550 | M5 | 50 | 47 | 8 | 4.4 | |
| GS6847320620 | M6 | 20 | 18 | 10 | 5.3 | |
| GS6847320630 | M6 | 30 | 27 | 10 | 5.3 | |
| GS6847320640 | M6 | 40 | 37 | 10 | 5.3 | |
| GS6847320650 | M6 | 50 | 47 | 10 | 5.3 | |
| GS6847320660 | M6 | 60 | 57 | 10 | 5.3 | |
| GS6847320830 | M8 | 30 | 27 | 12 | 7.1 | |
| GS6847320840 | M8 | 40 | 37 | 12 | 7.1 | |
| GS6847320850 | M8 | 50 | 47 | 12 | 7.1 | |
| GS6847320860 | M8 | 60 | 57 | 12 | 7.1 | |
| GS6847320870 | M8 | 70 | 65 | 12 | 7.1 | |
| GS6847320880 | M8 | 80 | 77 | 12 | 7.1 | |
| GS6847321070 | M10 | 70 | 65 | 15 | 8.9 | |
