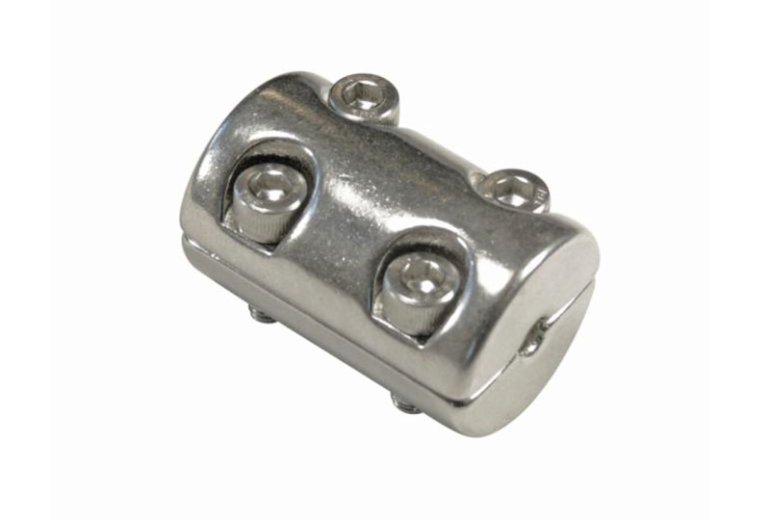

Rigging Hardware of Stainless Steel 316 2-part clamping ring with 4 screws.
The GS6814701 2-Part Clamping Ring with 4 Screws provides robust fastening for wire ropes in demanding industrial environments. Its precision stainless steel construction and four-screw design enable quick installation, high stability, and enhanced load-bearing capacity.
| GS6814701 | 2-Part clamping ring with 4 screws | |||||

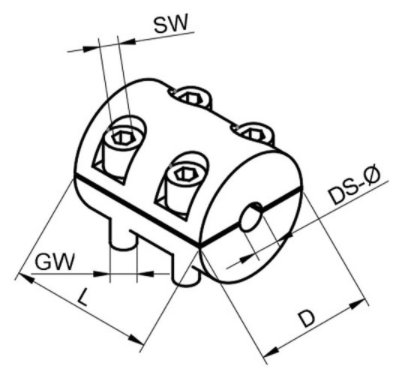

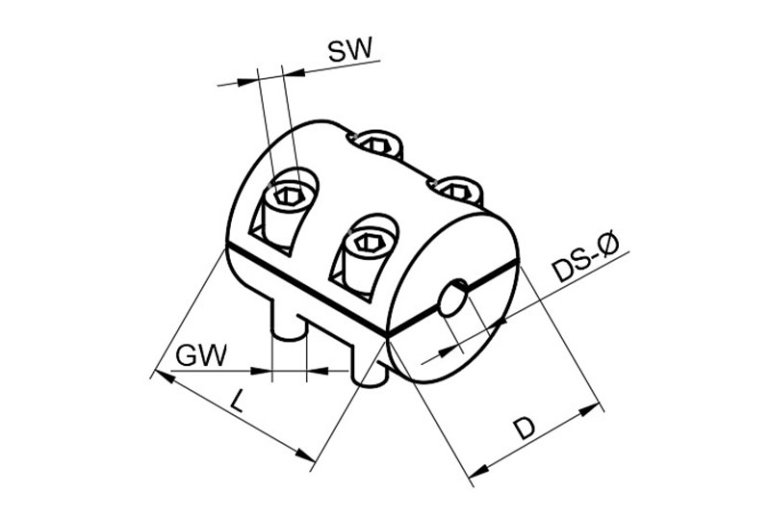

 | Item-No. | WR-ø | GW | L | D | Drive |
| GS6814701403 | 3 | M4 | 27 | 22 | SW3 | |
| GS6814701404 | 4 | M4 | 27 | 22 | SW3 | |
| GS6814701405 | 5 | M5 | 42 | 28 | SW4 | |
| GS6814701406 | 6 | M5 | 42 | 28 | SW4 | |
| GS6814701408 | 8 | M5 | 42 | 28 | SW4 | |
