Customized Products 316 Stainless Steel Thimble, heavy duty for Diameter Cable Rigging Clothesline Rope Hardware Fittings.
The GS68536 Heavy-Duty Thimble provides maximum protection for ropes in high-stress industrial, marine, and construction environments. Its reinforced stainless steel construction resists corrosion and deformation while maintaining strength under heavy loads.
| GS68536 | Thimble, heavy duty | ||||||

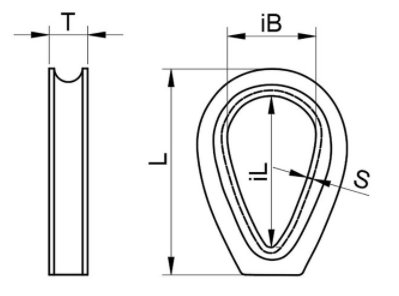

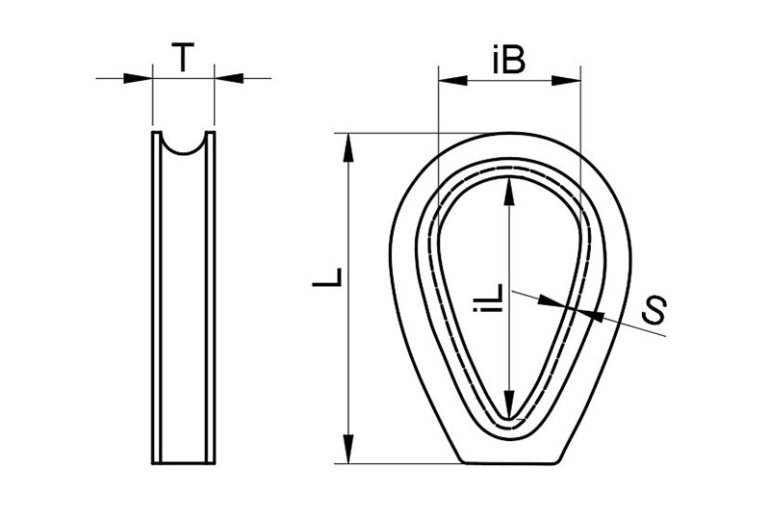

 | Item-No. | WR-ø | L | iL | iB | T | S |
| GS68536402 | 2 | 21 | 15 | 9 | 5 | 1.6 | |
| GS68536403 | 3 | 26 | 18 | 11 | 6 | 2 | |
| GS68536404 | 4 | 32 | 21 | 14 | 7 | 3 | |
| GS68536405 | 5 | 42 | 28 | 15 | 9 | 4.5 | |
| GS68536406 | 6 | 43 | 28 | 17 | 11 | 2.6 | |
| GS68536408 | 8 | 58 | 43 | 24 | 10 | 3.2 | |
| GS68536410 | 10 | 68 | 51 | 28 | 13 | 5 | |
| GS68536412 | 12 | 86 | 62 | 37 | 16 | 5 | |
| GS68536414 | 14 | 100 | 74 | 39 | 19 | 8.5 | |
| GS68536416 | 16 | 110 | 82 | 47 | 20 | 6.5 | |
| GS68536419 | 19 | 124 | 94 | 60 | 24 | 4.5 | |
| GS68536422 | 22 | 126 | 100 | 63 | 28 | 5.5 | |
| GS68536425 | 25 | 146 | 115 | 74 | 32 | 6 | |
