316 Stainless Steel Ferrule Essential Hardware Boat Accessories.

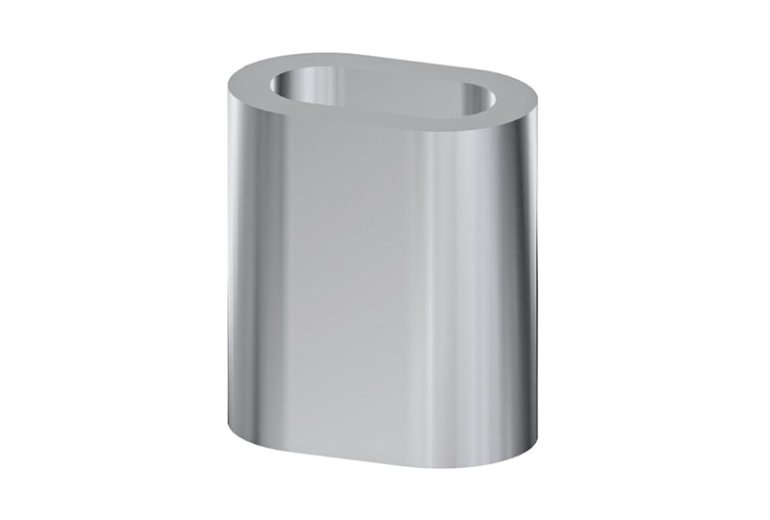

The GS68470 Stainless Steel Ferrule is crafted from premium stainless steel, offering exceptional tensile strength and outstanding corrosion resistance. Its precision-machined sleeve ensures secure crimping and uniform load distribution, maintaining mechanical stability in demanding environments.
| GS68470 | Stainless steel ferrule | ||||||

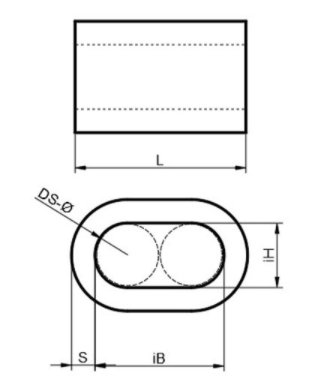

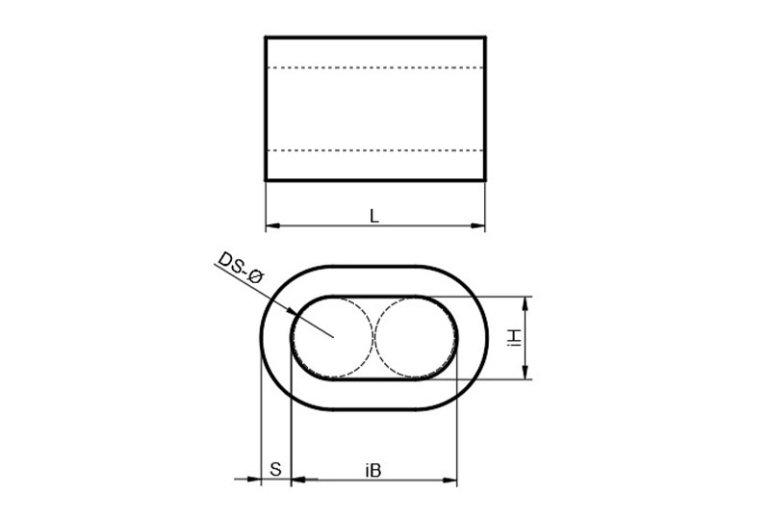

 | Item-No. | WR-∅ | Crimp size | iH | iB | S | L |
| GS68470401 | 1 | 1 | 1.2 | 2.4 | 0.65 | 5 | |
| GS684704015 | 1.5 | 1.5 | 1.7 | 3.4 | 0.85 | 6 | |
| GS68470402 | 2 | 2 | 2.5 | 4.5 | 1 | 7 | |
| GS684704025 | 2.5 | 2.5 | 2.7 | 5.4 | 1 | 9 | |
| GS68470403 | 3 | 3 | 3.5 | 7.5 | 1 | 11 | |
| GS68470404 | 4 | 4 | 4.5 | 9.2 | 1.5 | 14 | |
| GS68470405 | 5 | 5 | 5.6 | 11.5 | 2 | 18 | |
| GS68470406 | 6 | 6 | 6.8 | 13.5 | 2.5 | 21 | |
| GS68470407 | 7 | 7 | 8 | 16.5 | 2.5 | 25 | |
| GS68470408 | 8 | 8 | 9 | 18 | 3 | 28 | |
| GS68470410 | 10 | 10 | 11.5 | 22.5 | 3.2 | 35 | |
| GS68470412 | 12 | 12 | 14.2 | 28.5 | 4 | 42 | |
