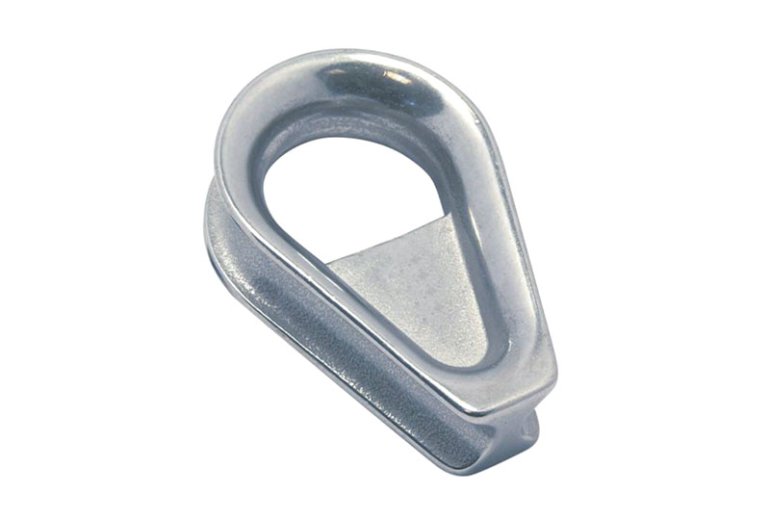

Customized Products 316 Stainless Steel Thimble with bar for Diameter Cable Rigging Clothesline Rope Hardware Fittings.
The GS68636 Thimble with Bar is designed to provide enhanced protection and support for wire ropes in demanding industrial, marine, and construction environments. The integrated bar helps maintain proper rope alignment, reduces wear, and improves safety during lifting, mooring, or rigging operations.
| GS68536 | Thimble, heavy duty | ||||||

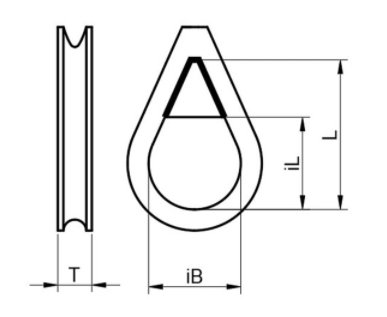

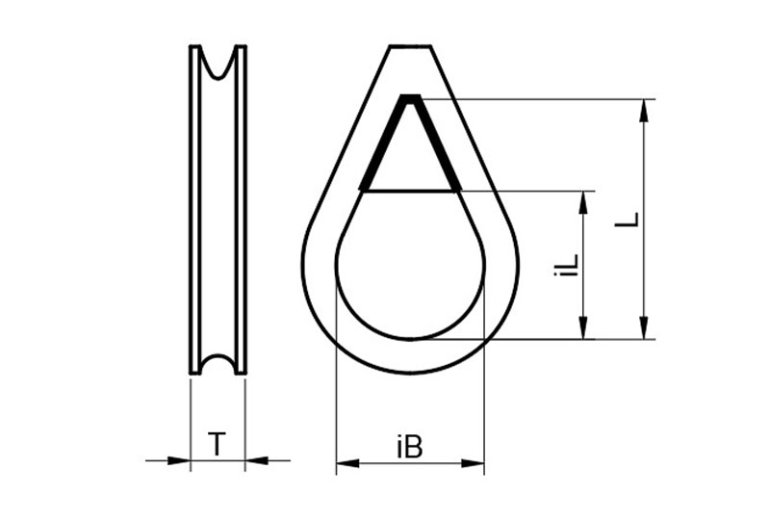

 | Item-No. | WR-ø | L | iL | iB | T | S |
| GS68536402 | 2 | 21 | 15 | 9 | 5 | 1.6 | |
| GS68536403 | 3 | 26 | 18 | 11 | 6 | 2 | |
| GS68536404 | 4 | 32 | 21 | 14 | 7 | 3 | |
| GS68536405 | 5 | 42 | 28 | 15 | 9 | 4.5 | |
| GS68536406 | 6 | 43 | 28 | 17 | 11 | 2.6 | |
| GS68536408 | 8 | 58 | 43 | 24 | 10 | 3.2 | |
| GS68536410 | 10 | 68 | 51 | 28 | 13 | 5 | |
| GS68536412 | 12 | 86 | 62 | 37 | 16 | 5 | |
| GS68536414 | 14 | 100 | 74 | 39 | 19 | 8.5 | |
| GS68536416 | 16 | 110 | 82 | 47 | 20 | 6.5 | |
| GS68536419 | 19 | 124 | 94 | 60 | 24 | 4.5 | |
| GS68536422 | 22 | 126 | 100 | 63 | 28 | 5.5 | |
| GS68536425 | 25 | 146 | 115 | 74 | 32 | 6 | |
