Stainless Steel 316 Wire Rope Thimble Clamp Rigging Hardware .
Constructed from stainless steel, the thimble provides robust load-bearing capabilities and minimizes friction on wire ropes. Its precision design ensures proper rope alignment and long-term durability in demanding industrial and marine environments.
| GS68247 | Thimble | |||||

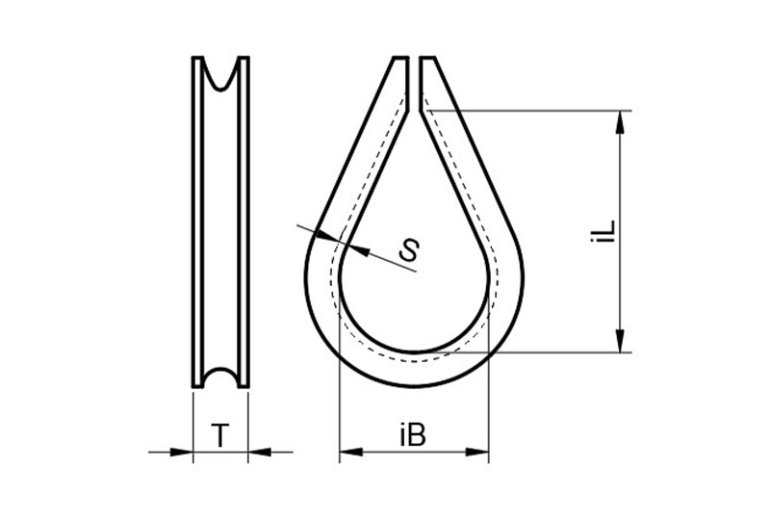

 | Item-No. | WR-ø | iL | iB | S | T |
| GS68247402 | 2 | 10 | 7 | 0.7 | 4 | |
| GS682474025 | 2.5 | 14 | 8 | 0.7 | 4.5 | |
| GS68247403 | 3 | 15 | 9 | 1 | 5.5 | |
| GS68247404 | 4 | 18 | 11 | 1 | 6 | |
| GS68247405 | 5 | 20 | 14 | 1.2 | 7.5 | |
| GS68247406 | 6 | 26 | 15 | 1.2 | 9 | |
| GS68247407 | 7 | 27 | 15 | 1.2 | 10 | |
| GS68247408 | 8 | 29 | 18 | 1.5 | 12 | |
| GS68247410 | 10 | 43 | 23 | 1.5 | 14.5 | |
| GS68247412 | 12 | 50 | 29 | 1.5 | 18 | |
| GS68247414 | 14 | 54 | 33 | 2 | 21 | |
| GS68247416 | 16 | 64 | 37 | 2 | 23 | |
| GS68247418 | 18 | 70 | 40 | 2.5 | 24 | |
| GS68247420 | 20 | 75 | 45 | 2.5 | 28 | |
| GS68247422 24 | 22 | 88 | 53 | 2.5 | 33 | |
| GS68247424 | 24 | 92 | 58 | 3 | 33 | |
