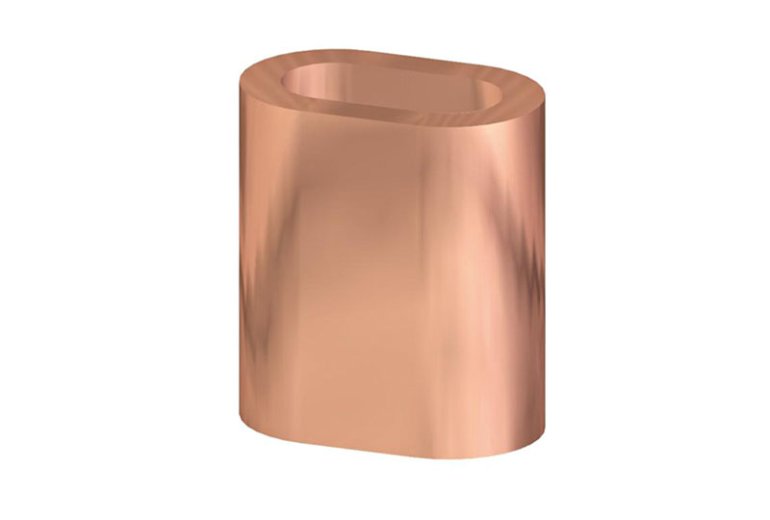

Wire Rope Swage Fitting Oval Type Copper Ferrule nickel plated.
The nickel-plated copper ferrule is engineered for precise crimping of wire ropes, combining copper’s ductility with a nickel coating to resist corrosion and maintain mechanical strength.
| GS68285 | Copper ferrule | ||||||

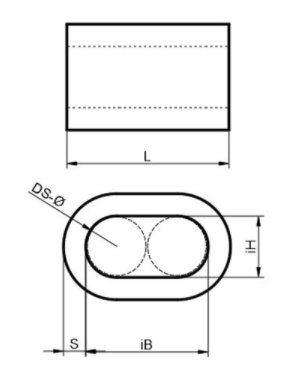

 | Item-No. | WR-ø | Crimp size | iH | iB | S | L |
| GS68285101 | 1 | 1.5 | 1.7 | 3.4 | 0.75 | 6 | |
| GS682851015 | 1.5 | 2 | 2.4 | 4.8 | 0.85 | 7 | |
| GS68285102 | 2 | 2.5 | 2.7 | 5.4 | 1.05 | 9 | |
| GS682851025 | 2.5 | 3 | 3.3 | 6.6 | 1.25 | 11 | |
| GS68285103 | 3 | 3.5 | 3.8 | 7.6 | 1.5 | 13 | |
| GS68285104 | 4 | 4.5 | 4.9 | 9.8 | 1.9 | 16 | |
| GS68285105 | 5 | 6 | 6.6 | 13.2 | 2.5 | 21 | |
| GS68285106 | 6 | 6.5 | 7.2 | 14.4 | 2.7 | 23 | |
| GS68285107 | 7 | 8 | 8.8 | 17.6 | 3.3 | 28 | |
| GS68285108 | 8 | 9 | 9.9 | 19.8 | 3.7 | 32 | |
| GS68285110 | 10 | 11 | 12.1 | 24.2 | 4.5 | 39 | |
| GS68285112 | 12 | 13 | 14.2 | 28.4 | 5.4 | 46 | |
| GS68285116 | 16 | 18 | 19.6 | 39.2 | 7.6 | 63 | |
