Stainless Steel 316 Tube thimble for Wire Rope Cable Boating Accessories.
The GS6815061 Tube Thimble is engineered to protect wire ropes and cables from wear, deformation, and abrasion in heavy-duty applications. Each thimble is precision-machined for exact fit, high durability, and corrosion resistance, ensuring long-term performance under demanding conditions.

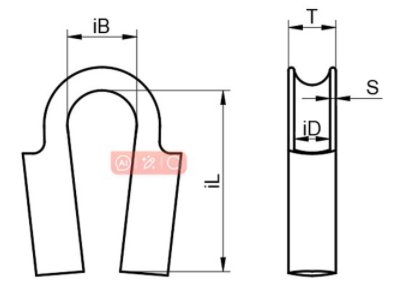

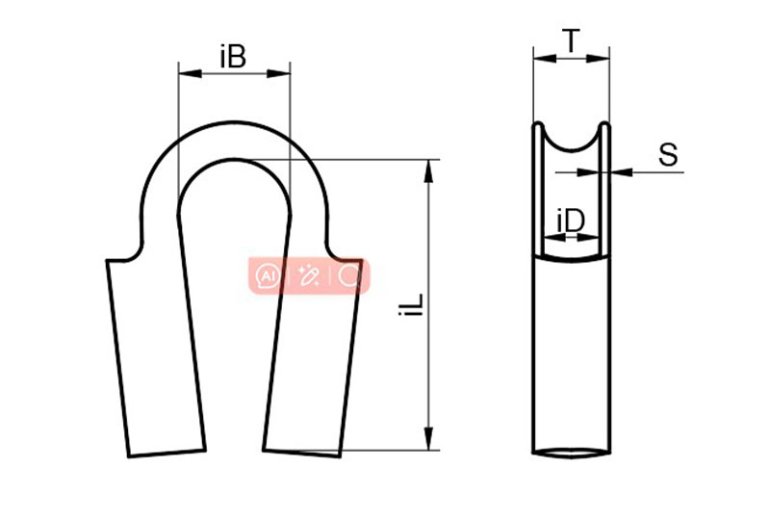

| GS6815061 | Tube thimble | ||||||
 | Item-No. | For rope-ø | iD | iL | iB | T | S |
| GS6815061406 | 6 | 6.7 | 35 | 15 | 10 | 1.5 | |
| GS6815061408 | 8 | 10 | 50 | 18 | 15 | 1.8 | |
| GS6815061410 | 10 | 11.7 | 60 | 23 | 16.3 | 1.8 | |
| GS6815061412 | 12 | 15.6 | 75 | 28 | 20.9 | 2.5 | |
| GS6815061414 | 14 | 18.3 | 87 | 34 | 23.9 | 3 | |
| GS6815061416 | 16 | 22.7 | 97 | 40 | 29.2 | 3 | |
| GS6815061420 | 20 | 24.3 | 125 | 50 | 30.6 | 3 | |
| GS6815061422 | 22 | 30.3 | 137 | 55 | 36.6 | 3 | |
| GS6815061426 | 26 | 32.6 | 160 | 65 | 40.5 | 4 | |
| GS6815061432 | 32 | 39 | 192 | 80 | 49.5 | 6 | |
