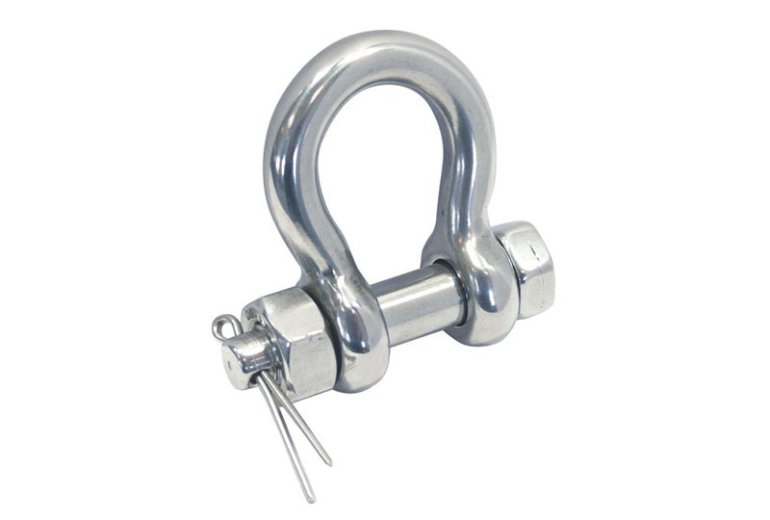

316 Stainless Steel Bow shackle with secure bolt for Mining and Heavy Industry Applications.
Engineered for secure rigging, the GS6814068 Bow Shackle with Secure Bolt offers a locked-bolt system that maintains stable connections under heavy loads. Crafted from stainless steel, it resists corrosion in marine, industrial, and construction environments.

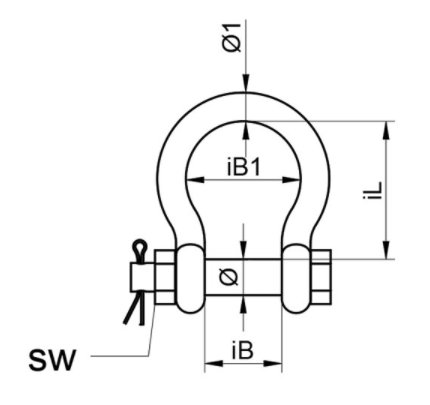

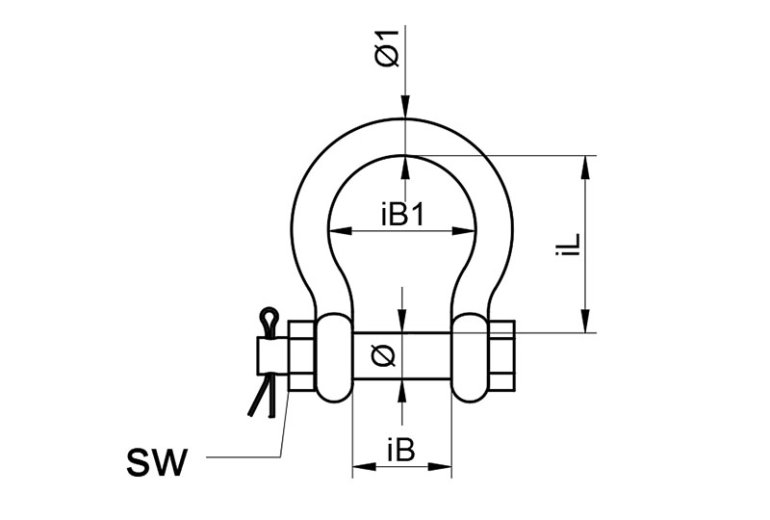

| GS 814068 | Bow shackle with secure bolt | |||||||
 | Item-No. | ø | ø1 | iL | iB | iB1 | Drive | BL KG |
| GS68140684048 | 6.4 | 5 | 22 | 9.7 | 16 | SW10 | 1320 | |
| GS68140684064 | 8 | 6 | 29 | 12 | 20 | SW13 | 2000 | |
| GS6814068408 | 9.5 | 8 | 31 | 13.5 | 21 | SW17 | 3000 | |
| GS68140684095 | 11 | 10 | 36 | 17 | 26 | SW19 | 4000 | |
| GS68140684127 | 16 | 12 | 48 | 21 | 33 | SW24 | 8000 | |
| GS6814068416 | 19 | 16 | 60 | 27 | 42 | SW30 | 12000 | |
| GS6814068419 | 22 | 20 | 71 | 32 | 52 | SW32 | 16000 | |
| GS6814068422 | 25 | 22 | 84 | 36 | 57 | SW36 | 20000 | |
