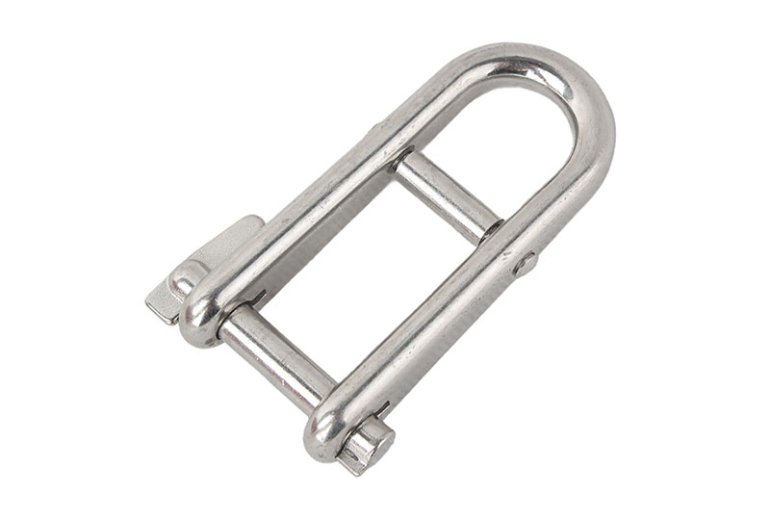

STAINLESS STEEL Key pin shackle with bar SCREW PIN EUROPEAN TYPE FORGED AISI316.
The GS68323 Key Pin Shackle with Bar is an essential tool for warehouse and logistics operations, enabling quick and reliable connection of chains, slings, or steel cables. Its robust design supports medium to high load lifting and ensures secure material handling, improving operational efficiency and safety.
| GS 8323 | Key pin shackle with bar | ||||||

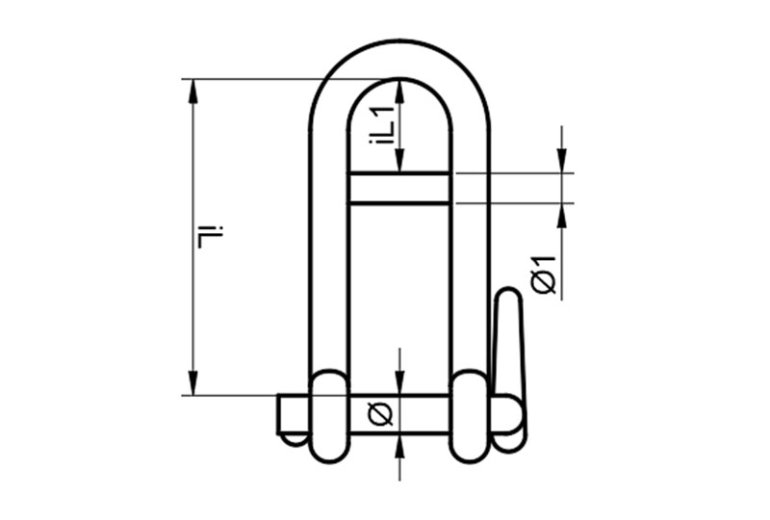

 | Item-No. | ø | ø1 | iL | iL1 | iB | BL KG |
| GS6832345 | 5 | 6 | 37.5 | 12.5 | 12 | 950 | |
| GS6832346 | 6 | 6 | 45 | 15 | 15 | 1360 | |
| GS6832348 | 8 | 6.5 | 60 | 20 | 20 | 2270 | |
