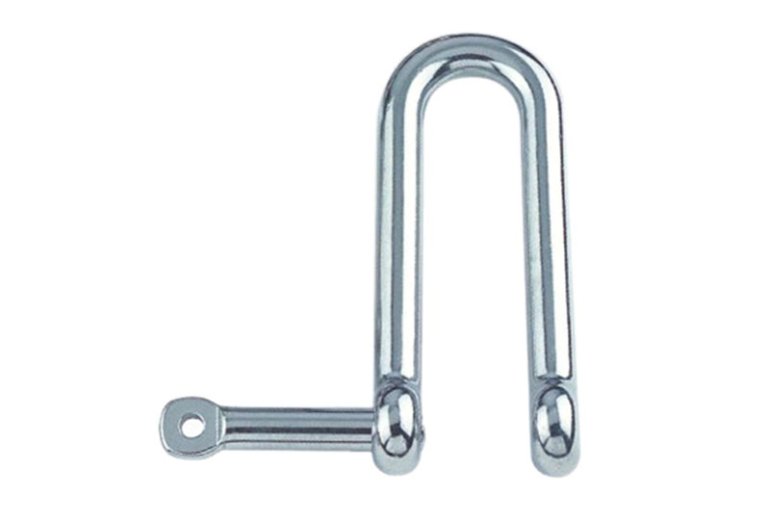

Stainless Steel Long D-shackle with captive pin EUROPEAN TYPE FORGED AISI316.
The GS68331 Long D-Shackle with Captive Pin is engineered for safe and secure rigging where stability is critical. Its long D-shaped body provides enhanced load capacity, while the captive pin prevents accidental removal during operation. Perfect for buyers looking to buy high-quality rigging hardware or request a quote for bulk orders.

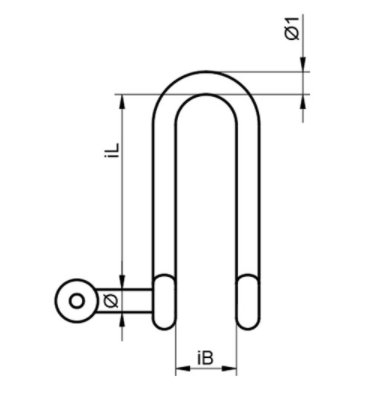

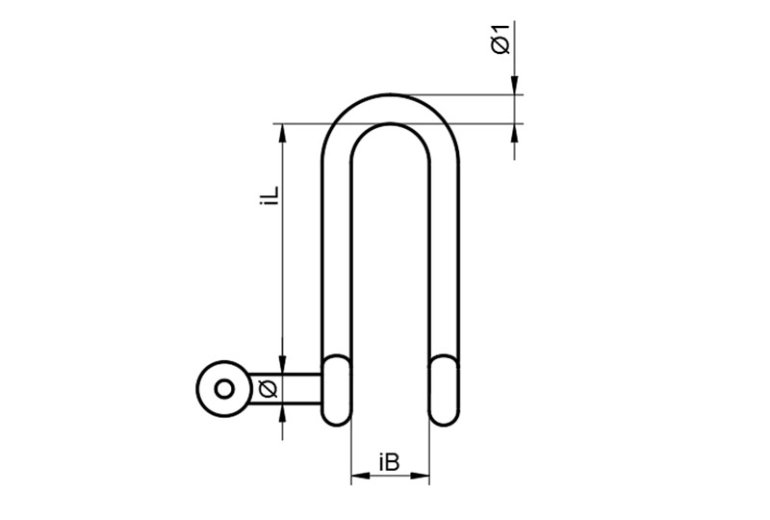

| GS 8331 | Long D-shackle with captive pin | |||||
 | Item-No. | ø | ø1 | iL | iB | BL KG |
| GS68331405 | 5 | 4.4 | 37.5 | 10 | 1000 | |
| GS68331406 | 6 | 5.3 | 45 | 12 | 1500 | |
| GS68331408 | 8 | 7.1 | 60 | 16 | 3000 | |
| GS68331410 | 10 | 8.9 | 75 | 20 | 4300 | |
| GS68331412 | 12 | 10.8 | 90 | 24 | 6600 | |
