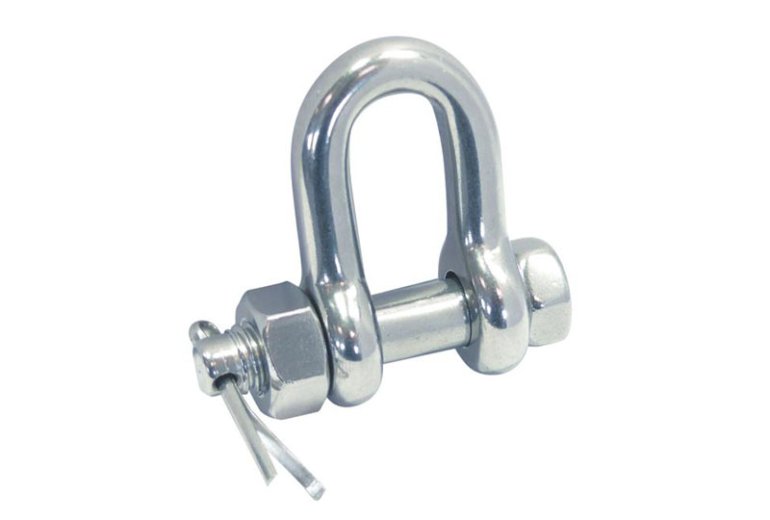

316 Stainless Steel D-shackle with secure bolt for Mining and Heavy Industry Applications.
The GS6814069 D-Shackle with Secure Bolt is a premium solution for demanding rigging projects. Every unit undergoes strict quality control, and customization options are available to meet unique project requirements. Choose GS6814069 to offer reliable and efficient rigging solutions that maximize performance and safety.
| GS 814069 | D-shackle with secure bolt | ||||||

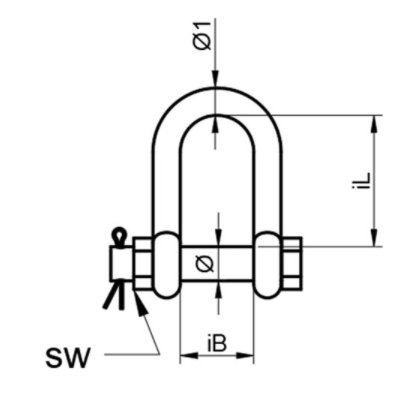

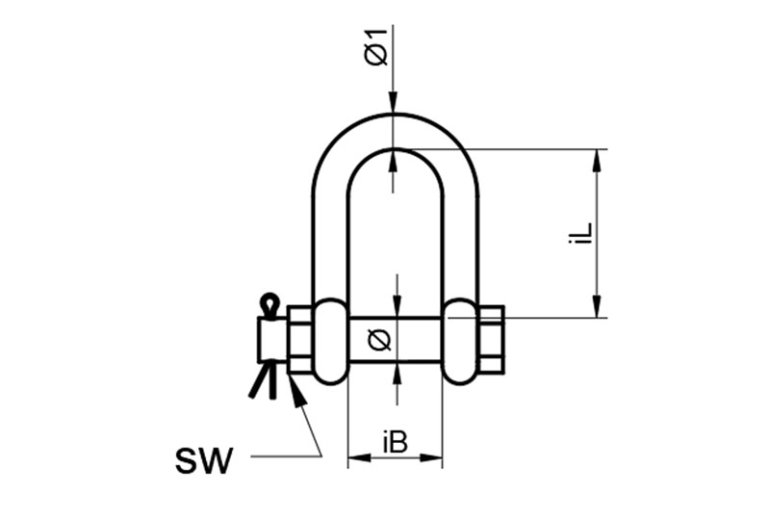

| Item-No. | ø | ø1 | iL | iB | Drive | BL KG | |
| GS68140694048 | 6.4 | 5 | 19 | 9.7 | SW10 | 1320 | |
| GS68140694064 | 8 | 6 | 22 | 12 | SW13 | 2000 | |
| GS6814069408 | 9.5 | 8 | 26 | 13.5 | SW17 | 3000 | |
| GS68140694095 | 11 | 10 | 32 | 17 | SW19 | 4000 | |
| GS68140694127 | 16 | 12 | 41 | 21 | SW24 | 8000 | |
| GS6814069416 | 19 | 16 | 51 | 27 | SW30 | 12000 | |
| GS6814069419 | 22 | 20 | 60 | 32 | SW32 | 16000 | |
| GS6814069422 | 25 | 22 | 71 | 36 | SW36 | 20000 | |
