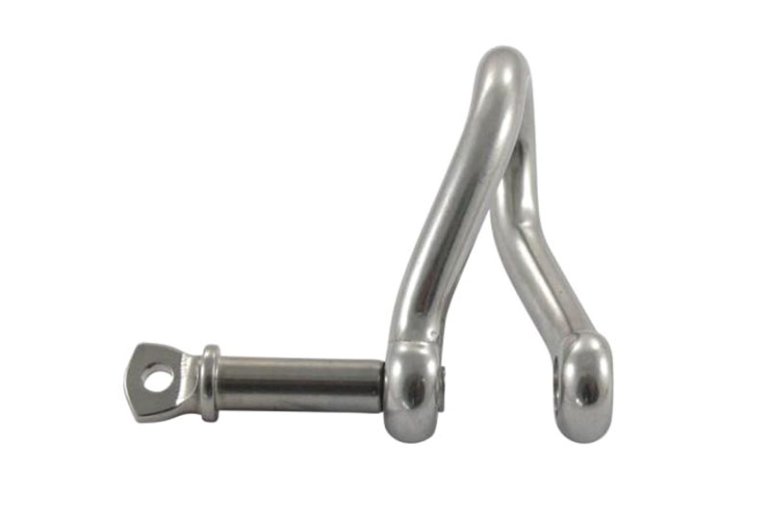

STAINLESS STEEL Twisted shackle with captive pin EUROPEAN TYPE FORGED AISI316.

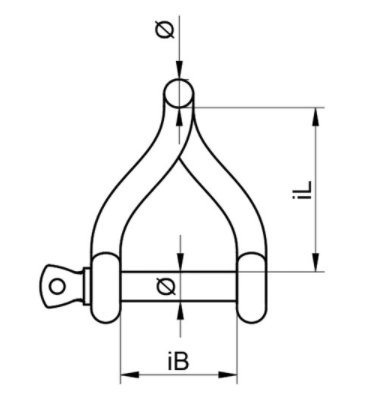

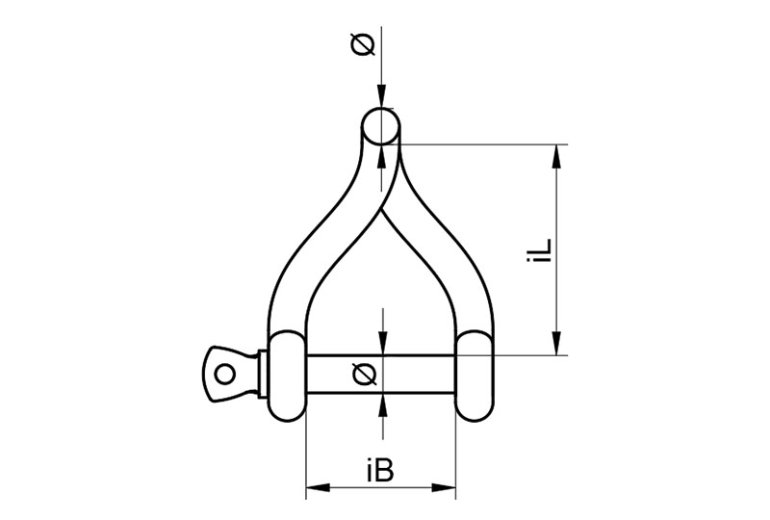

| GS 814946 | Twisted shackle with captive pin | |||||
 | Item-No. | ø | ø1 | iL | iB | BL KG |
| GS6814946404 | 4 | 3.5 | 22 | 8 | 700 | |
| GS6814946405 | 5 | 4.4 | 27.5 | 10 | 1000 | |
| GS6814946406 | 6 | 5.3 | 33 | 12 | 1500 | |
| GS6814946408 | 8 | 7.1 | 44 | 16 | 3000 | |
| GS6814946410 | 10 | 8.9 | 55 | 20 | 4300 | |
| GS6814946412 | 12 | 10.8 | 66 | 24 | 6600 | |
