316 Stainless Steel Straight D-shackle with hexagon socket for Marine and Industrial Rigging Aplications.
The GS68482 D-Shackle with Hexagon Socket is engineered for industrial lifting, warehouse operations, and cargo handling, providing secure and reliable load management. This shackle is ideal for professionals who manufacture, export, or buy high-quality rigging hardware and want to improve operational efficiency in heavy-duty applications.

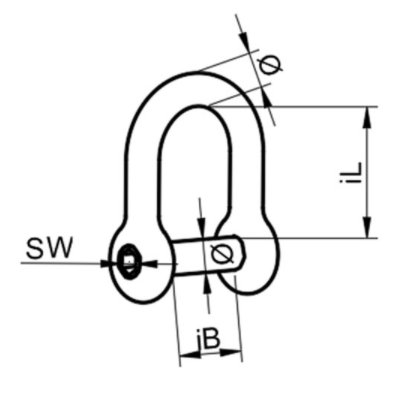

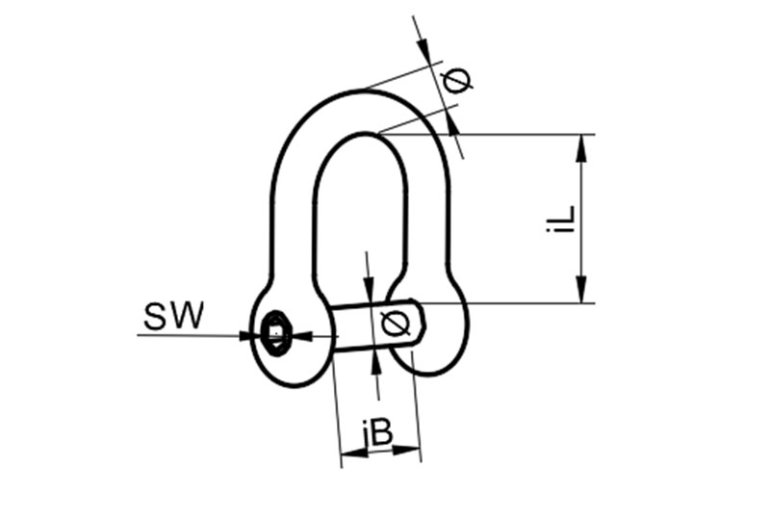

| GS 8482 | D-shackle with hexagon socket | |||||
 | Item-no. | ø | iL | iB | Drive | BL KG |
| GS68482405 | 5 | 17.5 | 10 | SW2.5 | 1000 | |
| GS68482406 | 6 | 21 | 12 | SW3 | 1500 | |
| GS68482408 | 8 | 28 | 16 | SW4 | 2400 | |
| GS68482410 | 10 | 35 | 20 | SW5 | 3700 | |
| GS68482412 | 12 | 42 | 24 | SW6 | 5400 | |
| GS68482414 | 14 | 48 | 28 | SW6 | 6500 | |
| GS68482416 | 16 | 52 | 32 | SW8 | 8800 | |
| GS68482419 | 19 | 63 | 38 | SW10 | 16000 | |
| GS68482422 | 22 | 76 | 44 | SW12 | 19000 | |
