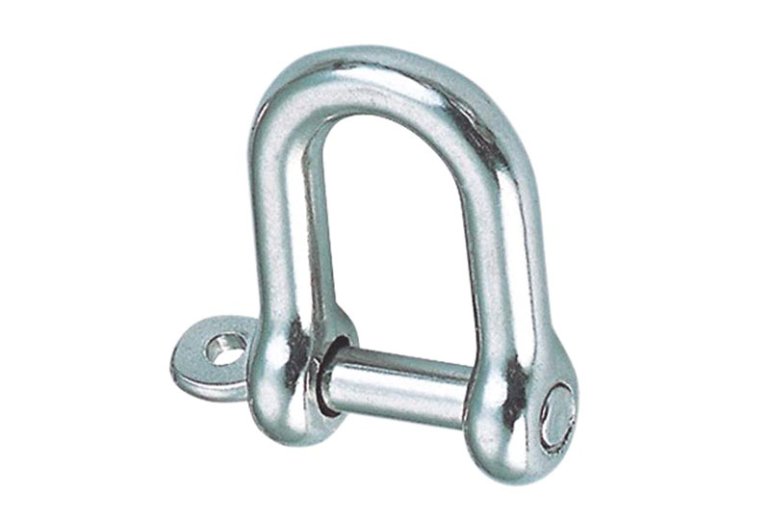

STAINLESS STEEL D - shackle with captive bolt EUROPEAN TYPE FORGED AISI316.

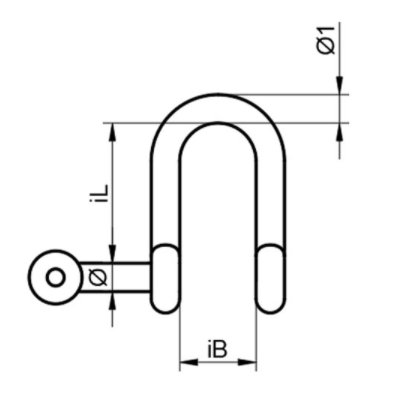

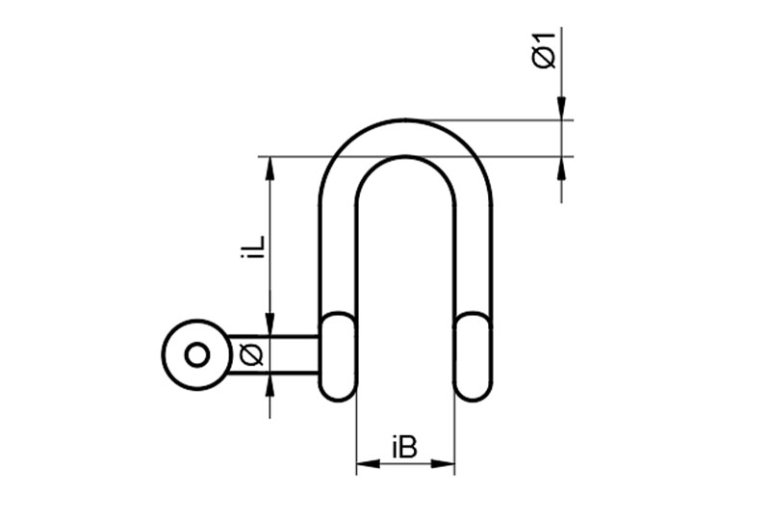

| GS 8326 | D - shackle with captive bolt | |||||
 | Item-No. | ø | ø1 | iL | iB | BL KG |
| GS68326404 | 4 | 3.5 | 14 | 8 | 700 | |
| GS68326405 | 5 | 4.4 | 17.5 | 10 | 1000 | |
| GS68326406 | 6 | 5.3 | 21 | 12 | 1500 | |
| GS68326408 | 8 | 7.1 | 28 | 16 | 3000 | |
| GS68326410 | 10 | 8.9 | 35 | 20 | 4300 | |
| GS68326412 | 12 | 10.8 | 42 | 24 | 6600 | |
