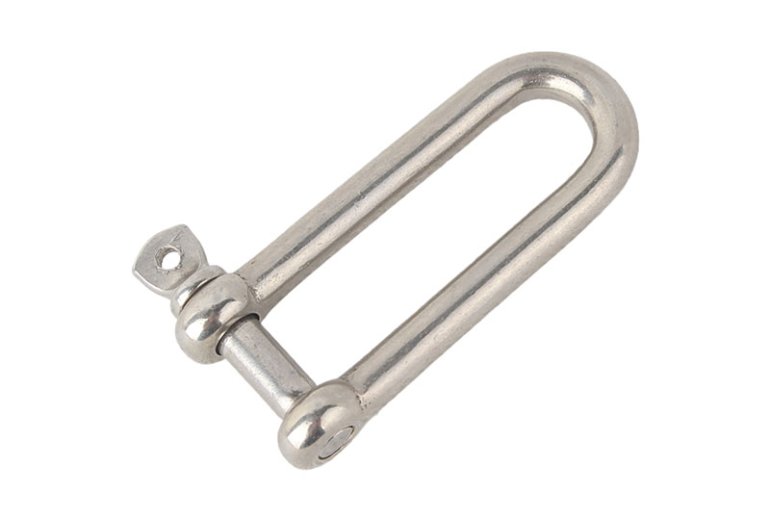

STAINLESS STEEL Long D - shackle SCREW PIN EUROPEAN TYPE FORGED AISI316.
The GS68259 Long D-Shackle features an extended body design, providing a larger attachment range for ropes, chains, and rigging systems. Its robust stainless steel construction ensures reliable performance in marine, industrial, and construction applications.

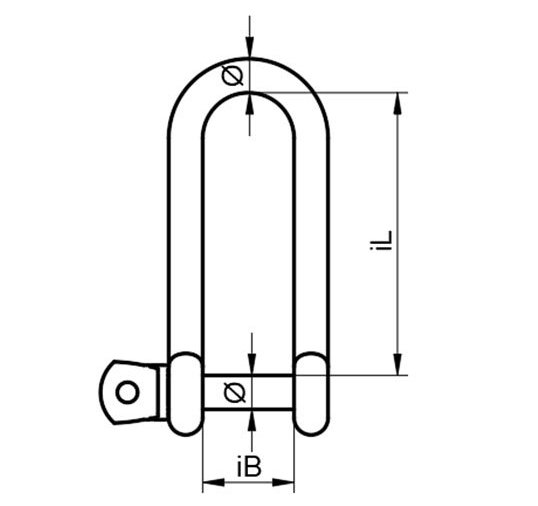

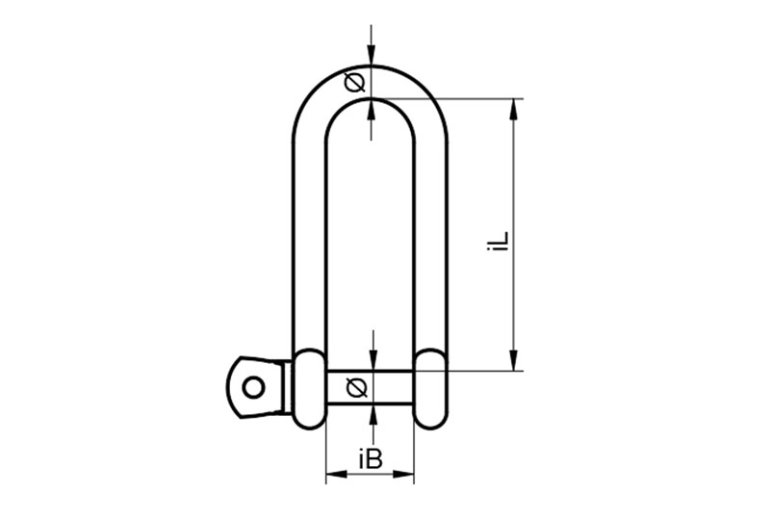

| GS 8259 | Long D -shackle | ||||
 | Item-No. | ø | iL | iB | BL KG |
| GS68259404 | 4 | 30 | 8 | 700 | |
| GS68259405 | 5 | 37.5 | 10 | 1000 | |
| GS68259406 | 6 | 45 | 12 | 1500 | |
| GS68259408 | 8 | 60 | 16 | 3000 | |
| GS68259410 | 10 | 75 | 20 | 4300 | |
| GS68259412 | 12 | 90 | 24 | 6600 | |
| GS68259416 | 16 | 120 | 32 | 10000 | |
