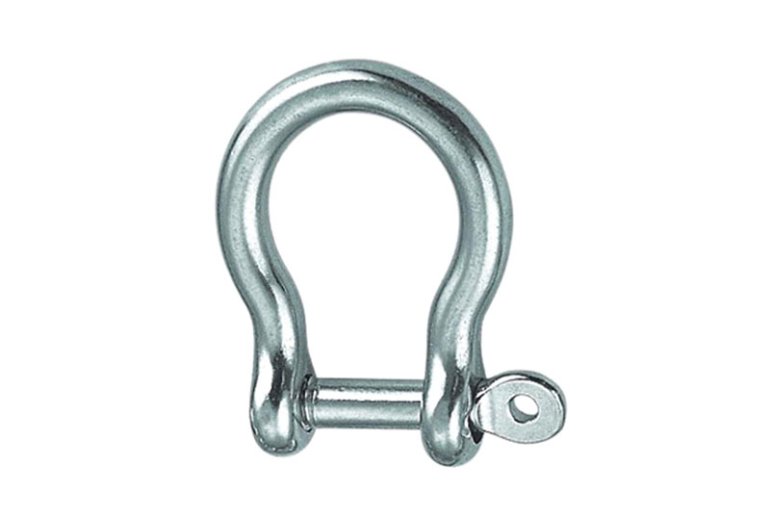

STAINLESS STEEL Bow shackle with captive pin EUROPEAN TYPE FORGED AISI316.
With a captive pin integrated into the design, the GS68222 Bow Shackle with Captive Pin eliminates the risk of lost components and keeps rigging operations efficient. Its stainless steel construction resists corrosion even in saltwater, making it a trusted choice for marine vessels, industrial load-handling, and construction sites.

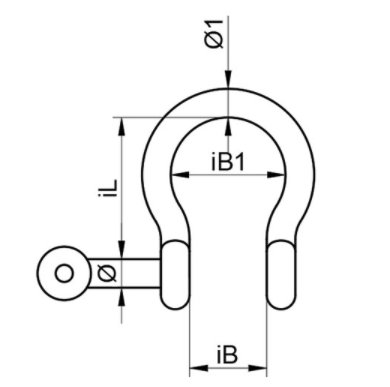

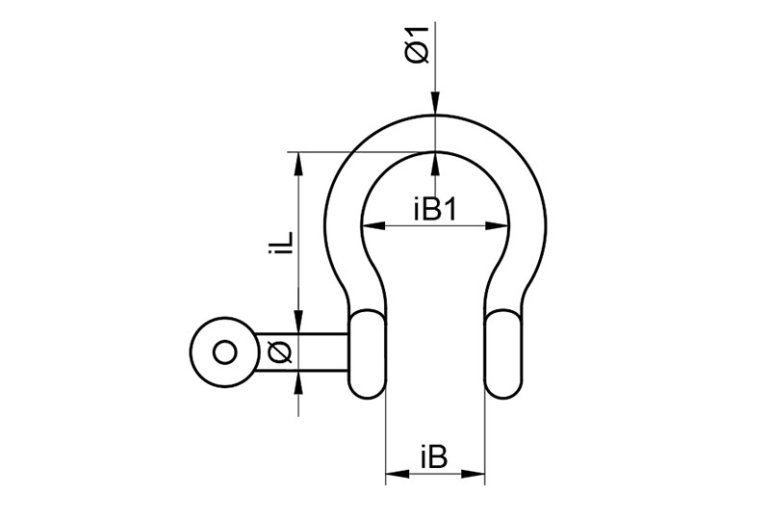

| GS 8222 | Bow shackle with captive pin | ||||||
 | Item-No. | ø | ø1 | iL | iB | iB1 | BL KG |
| GS68222404 | 4 | 3.5 | 14 | 8 | 14 | 800 | |
| GS68222405 | 5 | 4.4 | 17.5 | 10 | 17 | 1200 | |
| GS68222406 | 6 | 5.3 | 21 | 12 | 21 | 1800 | |
| GS68222408 | 8 | 7.1 | 28 | 16 | 28 | 2800 | |
| GS68222410 | 10 | 8.9 | 35 | 20 | 34 | 4300 | |
| GS68222412 | 12 | 10.8 | 42 | 24 | 42 | 5000 | |
