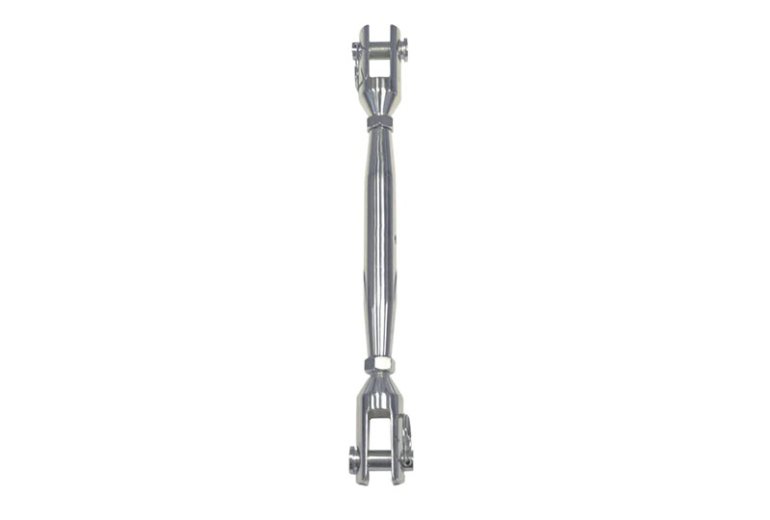

High Quality Stainless Steel 316 Turnbuckle fork-fork, machined.
The GS6814065 fork-fork turnbuckle is designed for precise and durable wire rope adjustment. Its dual fork ends enable balanced tensioning for marine, lifting, and industrial applications. The machined design ensures smooth operation, enhancing both safety and efficiency in rigging systems.

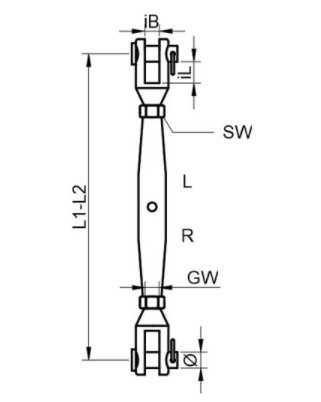

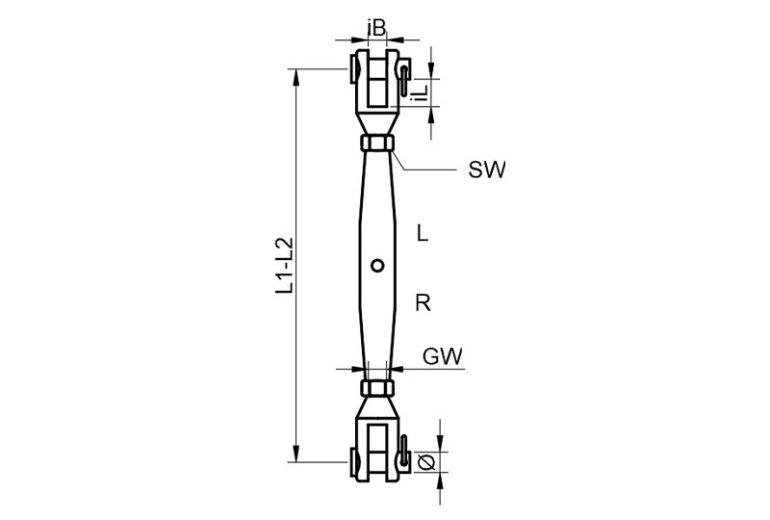

| GS 814065 | Turnbuckle fork-fork, machined | ||||||||
 | Item-No. | GW | ø | L1 | L2 | iL | iB | Drive | BL KG |
| GS6814065404 | M4 | 4 | 175 | 115 | 8 | 5.5 | SW7 | 380 | |
| GS6814065405 | M5 | 5 | 200 | 140 | 10 | 6.5 | SW7 | 460 | |
| GS6814065406 | M6 | 6 | 230 | 160 | 10 | 7.5 | SW8 | 910 | |
| GS6814065408 | M8 | 8 | 255 | 180 | 11 | 11 | SW10 | 1330 | |
| GS6814065410 | M10 | 9 | 310 | 220 | 14 | 12 | SW13 | 2180 | |
| GS6814065412 | M12 | 12 | 380 | 270 | 20 | 14 | SW17 | 2300 | |
| GS6814065414 | M14 | 12 | 415 | 295 | 22 | 15 | SW19 | 2200 | |
| GS6814065416 | M16 | 16 | 480 | 340 | 26 | 17 | SW22 | 5310 | |
