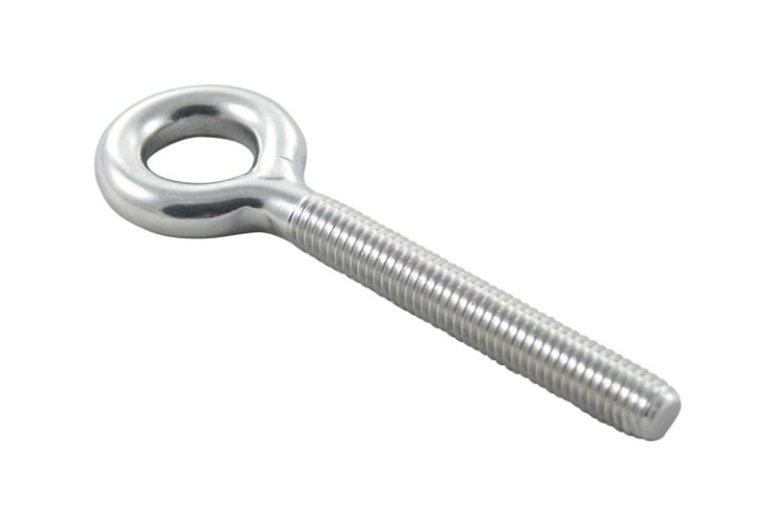

High Quality 316 Stainless Steel Eye screw with right thread.
Designed for durability and efficiency, the GS68433 Eye Screw with Right Thread offers secure connections across mechanical, industrial, and marine applications. Its right-hand threading allows standard installation while providing strong and consistent load-bearing support, ideal for professionals in machinery assembly, structural frameworks, and equipment maintenance.

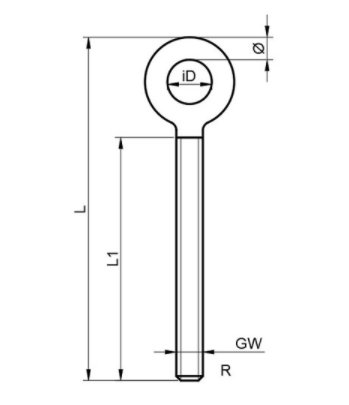

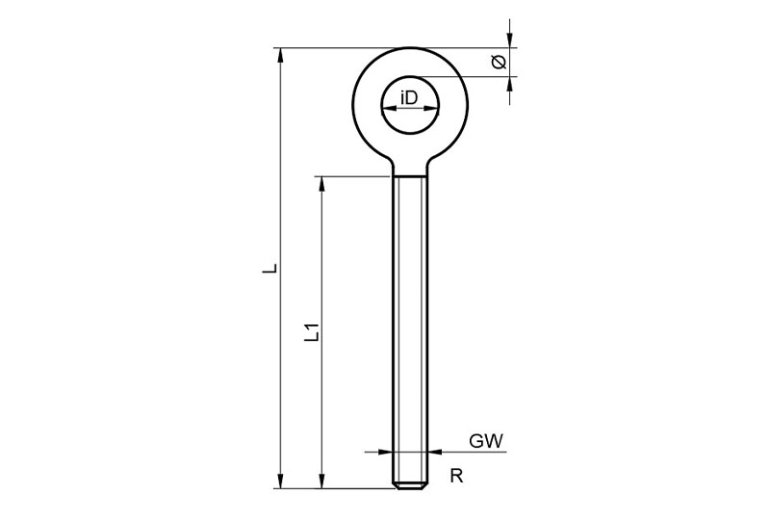

| GS 8433 | Eye screw with right thread | |||||
| ltem-no. | GW | L | L1 | iD | ø | |
| GS68433403 | M3 | 45 | 27 | 5 | 2.7 | |
| GS68433404 | M4 | 46 | 27 | 6 | 3.5 | |
| GS68433405 | M5 | 56 | 32 | 8 | 4.4 | |
| GS68433406 | M6 | 70 | 42 | 10 | 5.3 | |
| GS68433408 | M8 | 92 | 55 | 14 | 7.1 | |
| GS68433410 | M10 | 113 | 70 | 16 | 8.9 | |
| GS68433412 | M12 | 145 | 93 | 18 | 10.8 | |
| GS68433416 | M16 | 189 | 115 | 26 | 14.4 | |
| GS68433420 | M20 | 220 | 140 | 30 | 18 | |
| GS68433422 | M22 | 215 | 140 | 30 | 20 | |
| GS68433424 | M24 | 250 | 165 | 34 | 22 | |
