Stainless Steel 316 European Type Turnbuckle toggle-terminal.
The GS68276 Turnbuckle toggle-terminal is engineered for precise and reliable wire rope adjustment. Multiple sizes and thread variants (M5–M20) support various load requirements, making it ideal for applications where both adjustability and durability are critical.

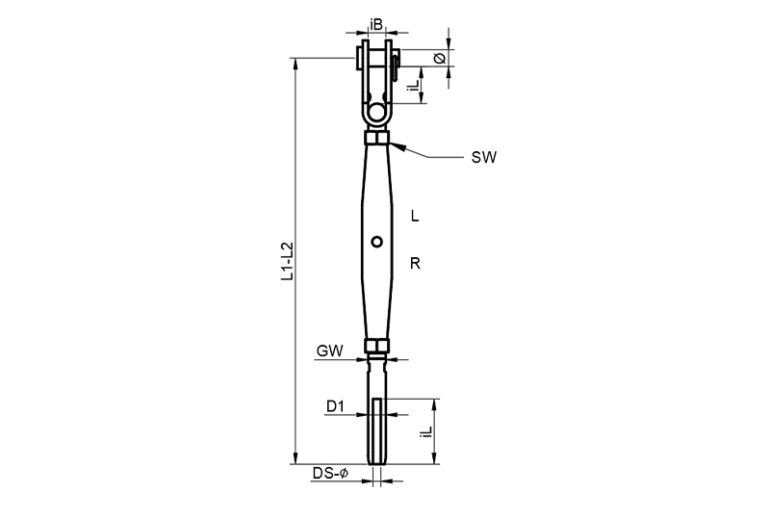

| GS 8276 | Turnbuckle toggle-terminal | ||||||||||
 | Item-No. | GW | WR-ø | ø | L1 | L2 | iL | iL1 | iB | D1 | Drive |
| GS68276405/2 | M5 | 2 | 5 | 165 | 235 | 13 | 32 | 6 | 5.5 | SW7 | |
| GS68276405/25 | M5 | 2.5 | 5 | 165 | 235 | 13 | 32 | 6 | 5.5 | SW7 | |
| GS68276406/3 | M6 | 3 | 6 | 250 | 180 | 15 | 39 | 7 | 6.4 | SW8 | |
| GS68276406/4 | M6 | 4 | 6 | 260 | 190 | 15 | 45 | 7 | 7.5 | SW8 | |
| GS68276408/4 | M8 | 4 | 8 | 285 | 210 | 20 | 45 | 10 | 7.5 | SW10 | |
| GS68276408/5 | M8 | 5 | 8 | 290 | 215 | 20 | 52 | 10 | 9 | SW10 | |
| GS68276410/5 | M10 | 5 | 9 | 340 | 250 | 25 | 52 | 12 | 9 | SW13 | |
| GS68276410/6 | M10 | 6 | 9 | 355 | 265 | 25 | 64 | 12 | 12.6 | SW13 | |
| GS68276412/6 | M12 | 6 | 12 | 410 | 300 | 30 | 64 | 13 | 12.6 | SW17 | |
| GS68276412/8 | M12 | 8 | 12 | 430 | 320 | 30 | 80 | 13 | 16 | SW17 | |
| GS68276416/8 | M16 | 8 | 16 | 530 | 390 | 40 | 80 | 17 | 16 | SW22 | |
| GS68276416/10 | M16 | 10 | 16 | 540 | 400 | 40 | 90 | 17 | 17.8 | SW22 | |
| GS68276420/10 | M20 | 10 | 19 | 590 | 450 | 45 | 105 | 20 | 17.8 | SW27 | |
