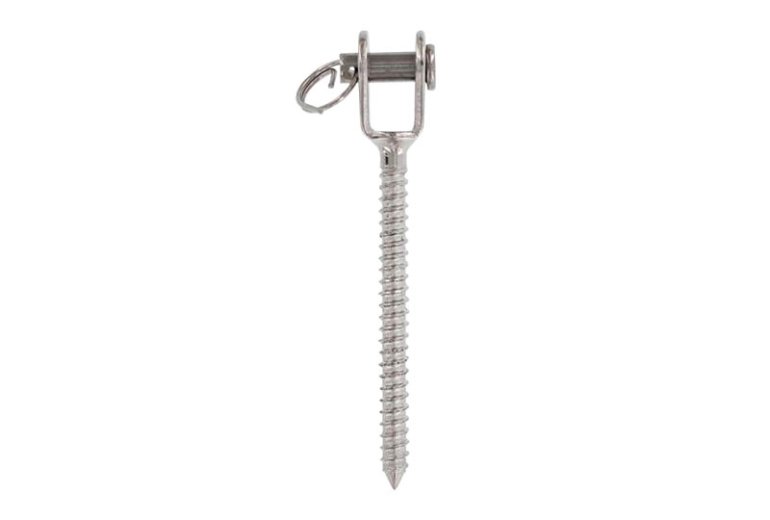

316 Stainless Steel Swage Fork with wood thread for Lifting and Rope Applications Box Packing.
The Fork with wood thread offers precision fastening for both woodworking and industrial applications. Its machined construction guarantees secure installation in wooden parts while seamlessly integrating with mechanical assemblies.

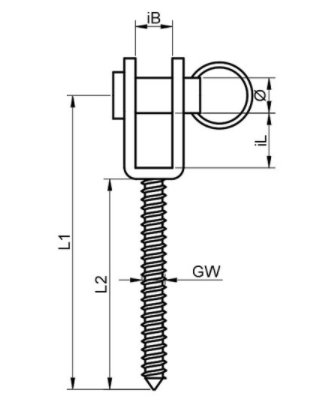

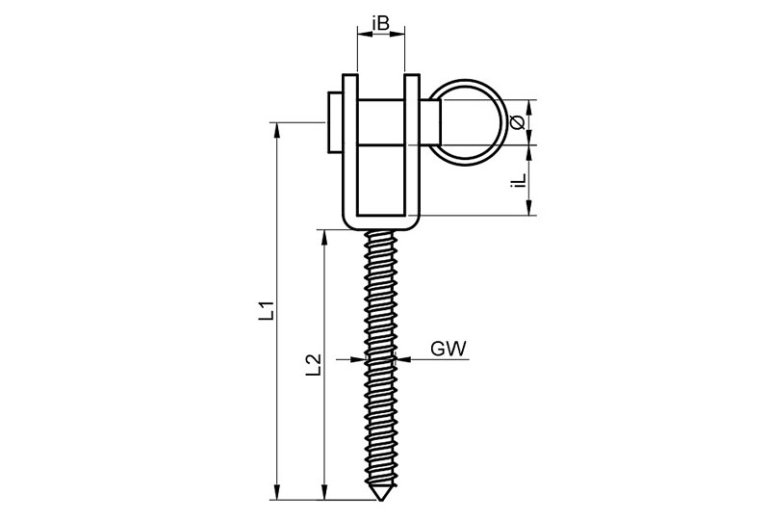

| GS 815120 | Fork with wood thread, | |||||||
 | Item-No. | GW | ø | L1 | L2 | iL | iB | T |
| GS6815120404 | 4 | 4 | 56 | 40 | 8 | 5.5 | 12 | |
| GS6815120405 | 5 | 5 | 69 | 50 | 10 | 6.5 | 13 | |
| GS6815120406 | 6 | 6 | 81 | 60 | 10 | 7.5 | 14 | |
| GS6815120408 | 8 | 8 | 105 | 80 | 11 | 11 | 18.5 | |
| GS6815120410 | 10 | 9 | 108 | 80 | 14 | 12 | 21 | |
