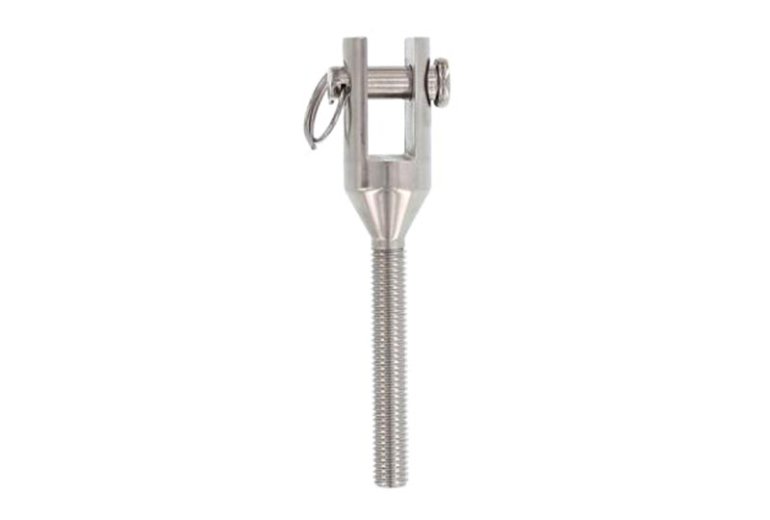

316 Stainless Steel Swage Fork with right thread, machined for Lifting and Rope Applications Box Packing.
The GS6814552 Fork with right thread, machined is manufactured directly in our factory to ensure precise, high-quality construction. Designed for professional production lines, this fork terminal provides efficient assembly, consistent quality, and easy maintenance for industrial applications.

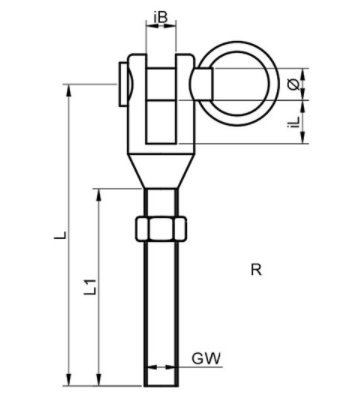

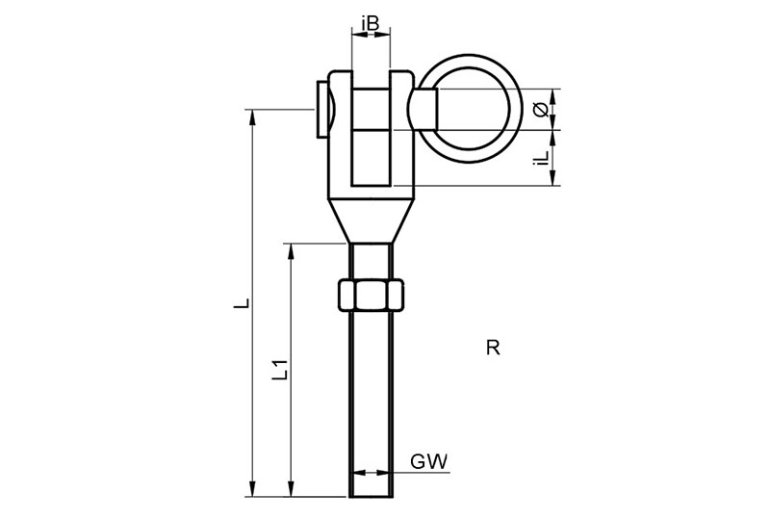

| GS 814552 | Fork with right thread, machined | ||||||
 | Item-No. | GW | ø | L1 | L2 | iL | iB |
| GS6814552404 | M4 | 4 | 55 | 35 | 8 | 5.5 | |
| GS6814552405 | M5 | 5 | 70 | 42 | 10 | 6.5 | |
| GS6814552406 | M6 | 6 | 78 | 48 | 10 | 7.5 | |
| GS6814552408 | M8 | 8 | 90 | 56 | 11 | 11 | |
| GS6814552410 | M10 | 9 | 104 | 63 | 14 | 12 | |
