High Polished AISI316 Stainless Steel Toggle terminal.
The toggle distributes loads evenly across the pivot, minimizing pinching or uneven tension, making it ideal for lifting, marine deck, and industrial cable systems.

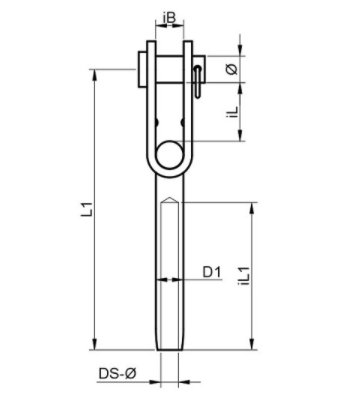

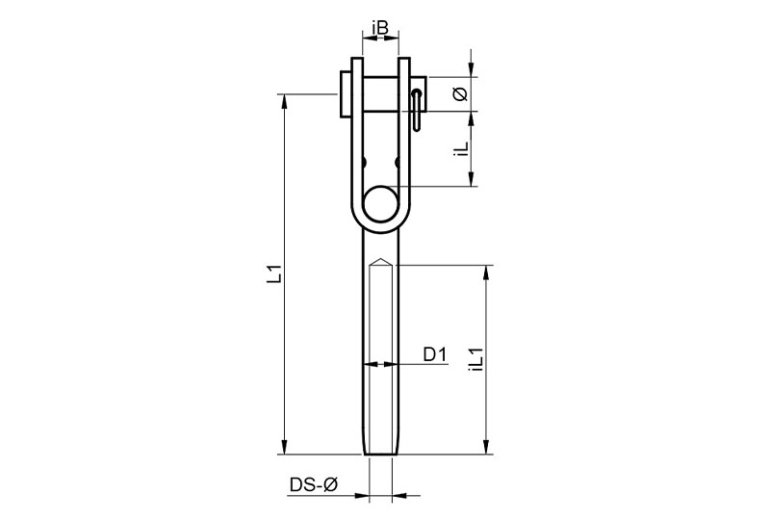

| GS 8483 | Toggle terminal | |||||||
 | Item-No. | WR-ø | ø | L1 | iL | iL1 | iB | D1 |
| GS68483403 | 3 | 6 | 75 | 15 | 39 | 7 | 6.4 | |
| GS68483404 | 4 | 8 | 89 | 20 | 45 | 10 | 7.5 | |
| GS68483405 | 5 | 9 | 104 | 25 | 52 | 12 | 9 | |
| GS68483406 | 6 | 12 | 127 | 30 | 64 | 13 | 12.6 | |
| GS68483408 | 8 | 16 | 163 | 40 | 80 | 17 | 16 | |
| GS68483410 | 10 | 19 | 184 | 45 | 90 | 20 | 20 | |
