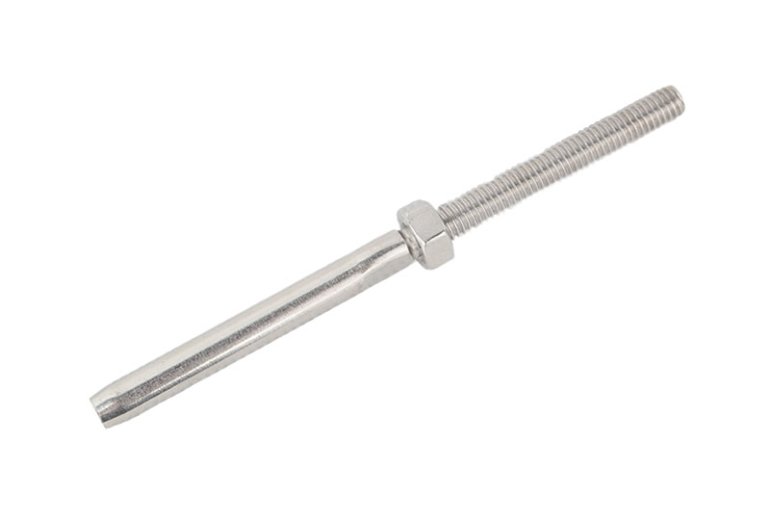

High Quality Rigging Stainless Steel 316 Cable Railing Marine Grade Terminal with left thread.
Engineered for safety and operational reliability, the GS68467 Terminal with left thread ensures secure connections across industrial equipment. Designed to prevent failures and save resources, this terminal is a trusted choice from China for manufacturers who sell high-quality systems.
| GS 8467 | Terminal with left thread | ||||||||

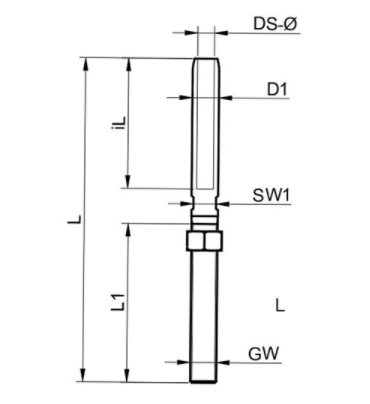

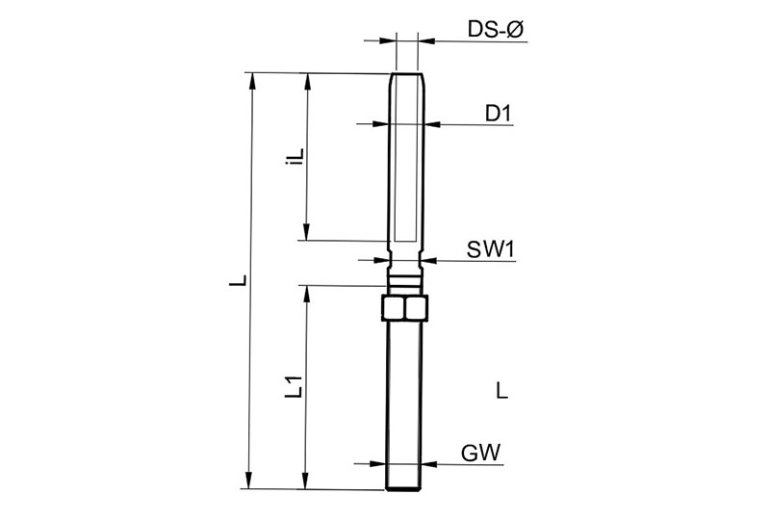

 | Item-No. | GW | WR-ø | L | L1 | iL | D1 | Drive | Drive 2 |
| GS68467404/2 | M4L | 2 | 73 | 38 | 24 | 4.8 | SW7 | SW3 | |
| GS68467405/2 | M5L | 2 | 86 | 40 | 32 | 5.5 | SW8 | SW4 | |
| GS68467405/25 | M5L | 2.5 | 86 | 40 | 32 | 5.5 | SW8 | SW4 | |
| GS68467406/3 | M6L | 3 | 100 | 48 | 39 | 6.4 | SW10 | SW5 | |
| GS68467406/4 | M6L | 4 | 110 | 48 | 45 | 7.5 | SW10 | SW6 | |
| GS68467408/4 | M8L | 4 | 117 | 57 | 45 | 7.5 | SW13 | SW6 | |
| GS68467408/5 | M8L | 5 | 124 | 57 | 52 | 9 | SW13 | SW7 | |
| GS68467410/5 | M10L | 5 | 130 | 63 | 52 | 9 | SW17 | SW7 | |
| GS68467410/6 | M10L | 6 | 145 | 63 | 64 | 12.6 | SW17 | SW10 | |
| GS68467412/6 | M12L | 6 | 162 | 80 | 64 | 12.6 | SW19 | SW10 | |
| GS68467412/8 | M12L | 8 | 180 | 80 | 80 | 16 | SW19 | SW14 | |
| GS68467414/7 | M14L | 7 | 180 | 90 | 70 | 14.2 | SW22 | SW12 | |
| GS68467416/8 | M16L | 8 | 200 | 100 | 80 | 16 | SW24 | SW14 | |
| GS68467416/10 | M16L | 10 | 210 | 100 | 90 | 17.8 | SW24 | SW15 | |
| GS68467420/10 | M20L | 10 | 230 | 119 | 90 | 17.8 | SW30 | SW15 | |
| GS68467420/12 | M20L | 12 | 245 | 120 | 105 | 20 | SW30 | SW17 | |
