High Polished AISI316 Stainless Steel Toggle with left thread.
The GS68503 features a left-hand threaded pivot, reducing the risk of loosening under vibration or dynamic load. This unique design ensures secure, stable operation in demanding environments. Made from high-grade polished stainless steel, the toggle withstands corrosive marine conditions and heavy-duty industrial use, ensuring durability and long service life.

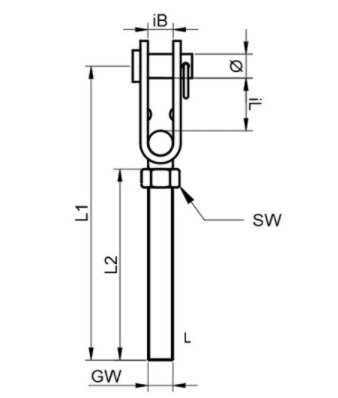

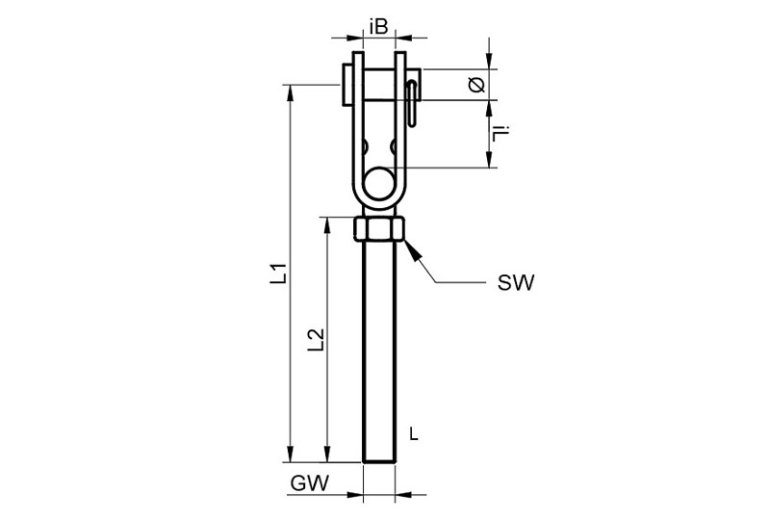

| GS 8503 | Toggle with left thread | |||||||
 | Item-No. | GW | ø | L1 | L2 | iL | iB | Drive |
| GS68503405 | M5L | 5 | 62 | 42 | 13 | 6 | SW8 | |
| GS68503406 | M6L | 6 | 77 | 48 | 15 | 7 | SW10 | |
| GS68503408 | M8L | 8 | 94 | 56 | 20 | 10 | SW13 | |
| GS68503410 | M10L | 9 | 115 | 67 | 25 | 12 | SW17 | |
| GS68503412 | M12L | 12 | 136 | 81 | 30 | 13 | SW19 | |
| GS68503416 | M16L | 16 | 163 | 103 | 40 | 17 | SW24 | |
| GS68503420 | M20L | 19 | 198 | 115 | 45 | 20 | SW30 | |
