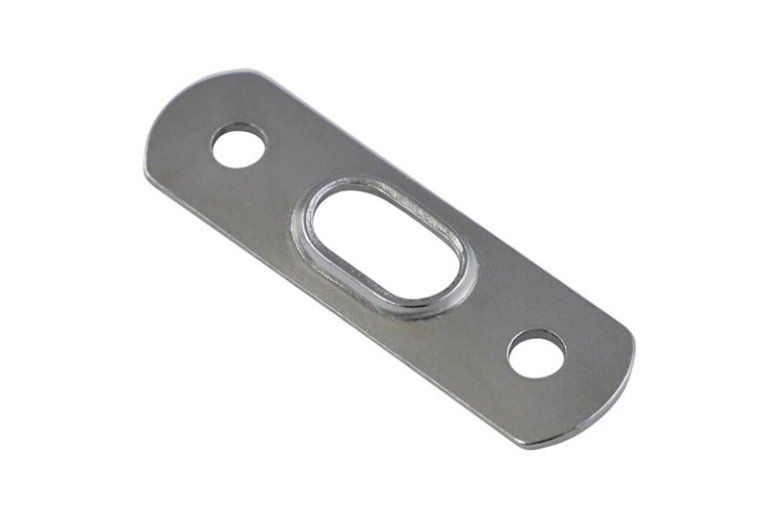

High Polished 316 Stainless Steel Back plate for T-terminal.
The Back Plate for T-Terminal stands out with its advanced design, providing enhanced stability and secure attachment for industrial and technical assemblies. Unlike standard back plates, it delivers reliable performance under heavy loads and solves common installation challenges.

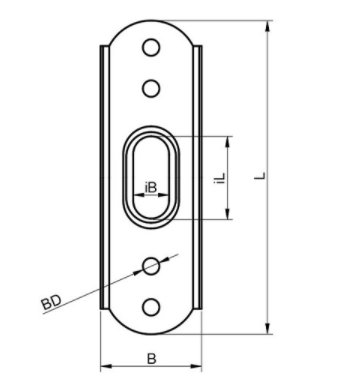

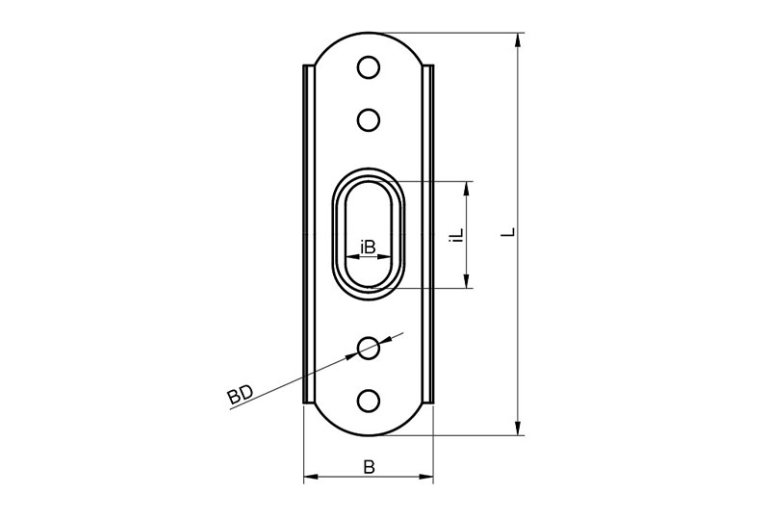

| GS 8302 | Back plate for T-terminal | ||||||
 | Item-No. | DS-ø | L | B | iL | iB | BD |
| GS68302403 | 3 | 50 | 15 | 14.3 | 7.4 | 4.5 | |
| GS68302405 | 4+5 | 88 | 27 | 27 | 9.9 | 5 | |
| GS68302407 | 6+7 | 122 | 39 | 35 | 15.9 | 6.4 | |
| GS68302410 | 8+10 | 151 | 39 | 41 | 18.8 | 6.5 | |
