316 Stainless Steel Fork with right thread for Marine Industrial Applications.

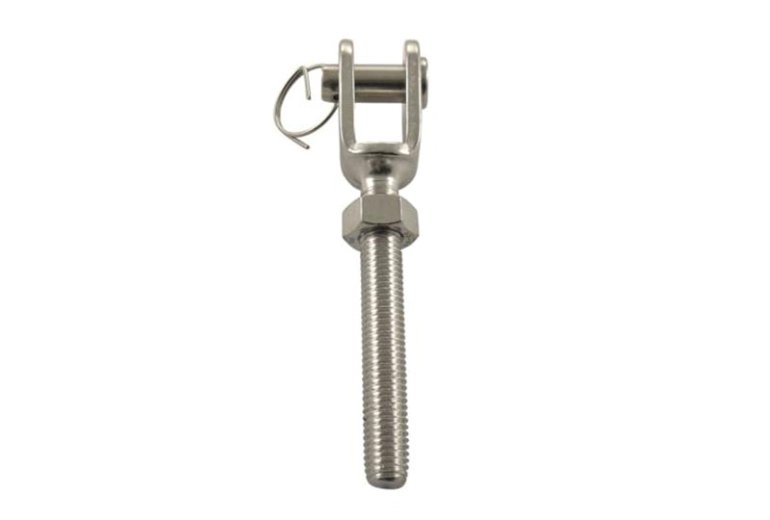

The GS68386 Fork with right thread stands out as a reliable industrial connector designed for factory and mechanical operations. Its right-hand threading integrates smoothly with standard machinery, ensuring stable performance in heavy-duty applications.

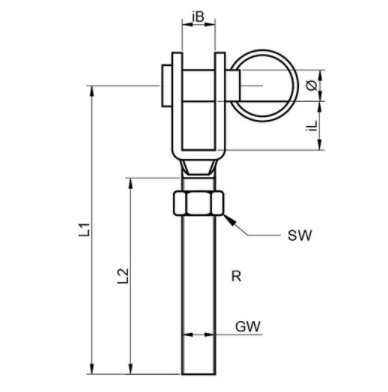

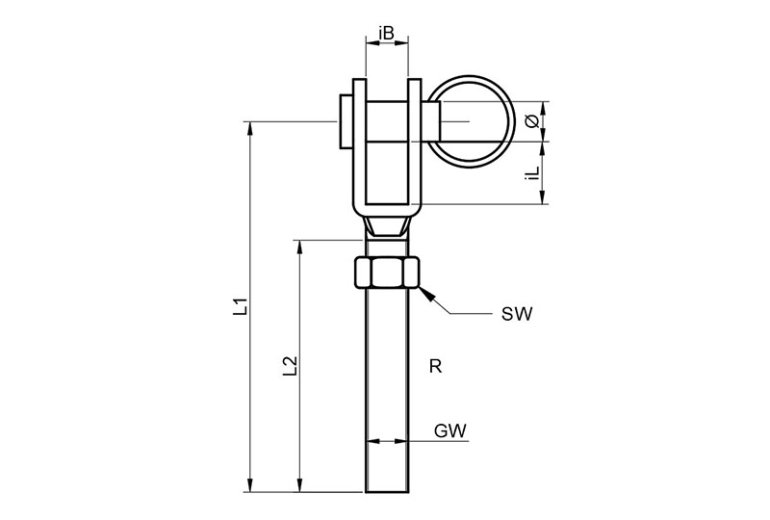

| GS 8386 | Fork with right thread | ||||||||
 | Item-No. | GW | ø | L1 | L2 | iL | iB | H | Drive |
| GS68386404 | M4 | 4 | 52 | 36 | 8 | 6.5 | 12 | SW7 | |
| GS68386405 | M5 | 5 | 65 | 42 | 10 | 6.5 | 13 | SW8 | |
| GS68386406 | M6 | 6 | 72 | 48 | 10 | 7.5 | 15 | SW10 | |
| GS68386408 | M8 | 8 | 81 | 56 | 11 | 11 | 19 | SW13 | |
| GS68386410 | M10 | 9 | 96 | 63 | 14 | 12 | 21 | SW17 | |
| GS68386412 | M12 | 12 | 122 | 80 | 20 | 14 | 27 | SW19 | |
| GS68386414 | M14 | 12 | 127 | 89 | 22 | 15 | 27 | SW22 | |
| GS68386416 | M16 | 16 | 158 | 103 | 26 | 17 | 38 | SW24 | |
