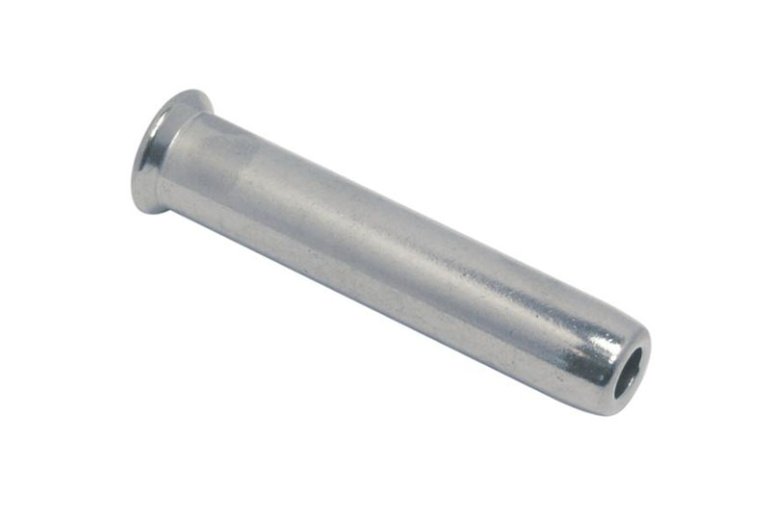

High Quality Stainless Steel 316 Mini-dome head terminal, thin walled.
The GS68448 Mini-Dome Head Terminal, Thin Walled is designed for applications requiring both strength and a sleek profile. Crafted from stainless steel, it delivers dependable fastening while its reduced wall thickness ensures a lightweight fit for compact assemblies.
| GS 8448 | Mini-dome head terminal, thin walled | ||||||

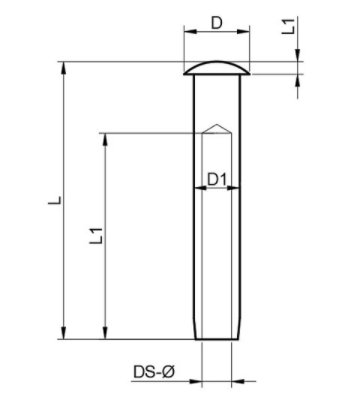

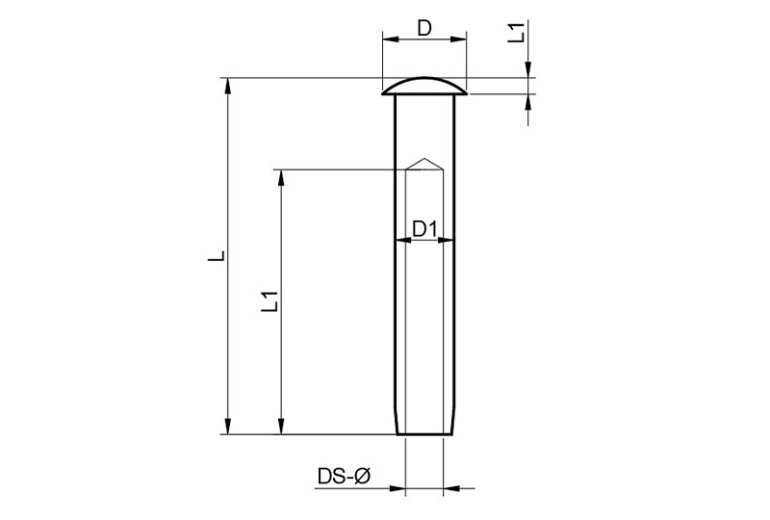

 | Item-No. | WR-ø | L | L1 | iL | D | D1 |
| GS6844842 | 2 | 25 | 2 | 18 | 8 | 4.8 | |
| GS68448425 | 2.5 | 25 | 2 | 18 | 8 | 4.8 | |
| GS6844843 | 3 | 25 | 2 | 18 | 9 | 5.5 | |
| GS6844844 | 4 | 30 | 2 | 24 | 11 | 6.4 | |
| GS6844845 | 5 | 35 | 2.5 | 28 | 13 | 7.5 | |
| GS6844846 | 6 | 40 | 3 | 32 | 16 | 9 | |
