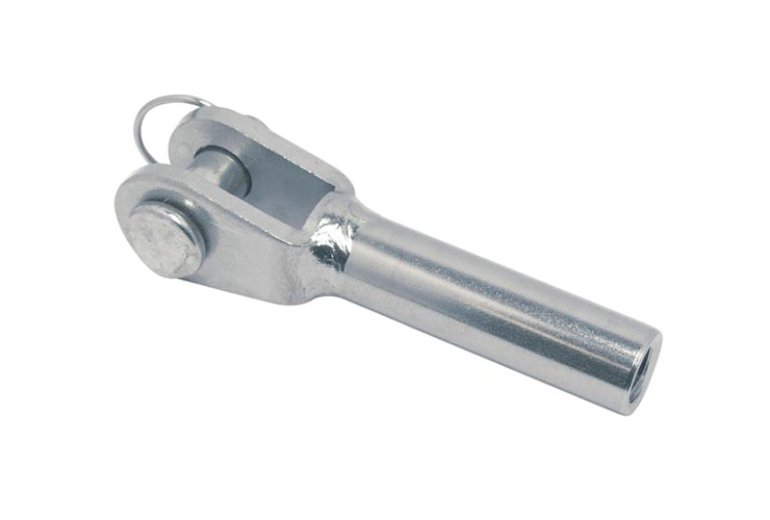

316 Stainless Steel Mini-fork with internal right thread for Marine Industrial Applications.
The GS68455 Mini-Fork with Internal Right Thread is crafted for precision load handling where space is limited. Its internal threading design allows easy adjustment and secure attachment to rods, chains, or structural assemblies, providing engineers and rigging specialists with a compact, reliable link that withstands demanding conditions.

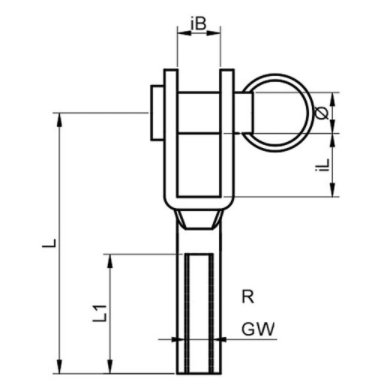

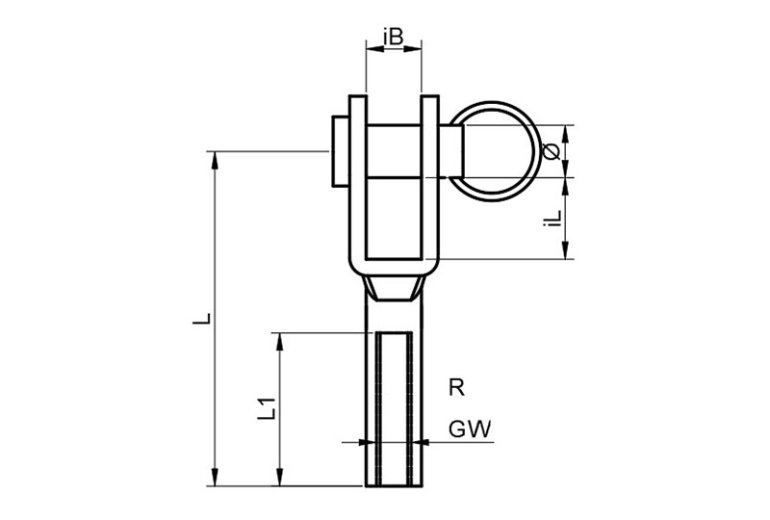

| GS 8455 | Mini-fork with internal right thread | |||||||
 | Item-No. | GW | ø | L1 | iL1 | iL | iB | D1 |
| GS68455405 | M5 | 5 | 55 | 27 | 10 | 8 | 7.5 | |
| GS68455406 | M6 | 6 | 60 | 30 | 10 | 9 | 8 | |
| GS68455408 | M8 | 8 | 65 | 31 | 12 | 10 | 12 | |
| GS68455410 | M10 | 10 | 75 | 40 | 12 | 12 | 14 | |
