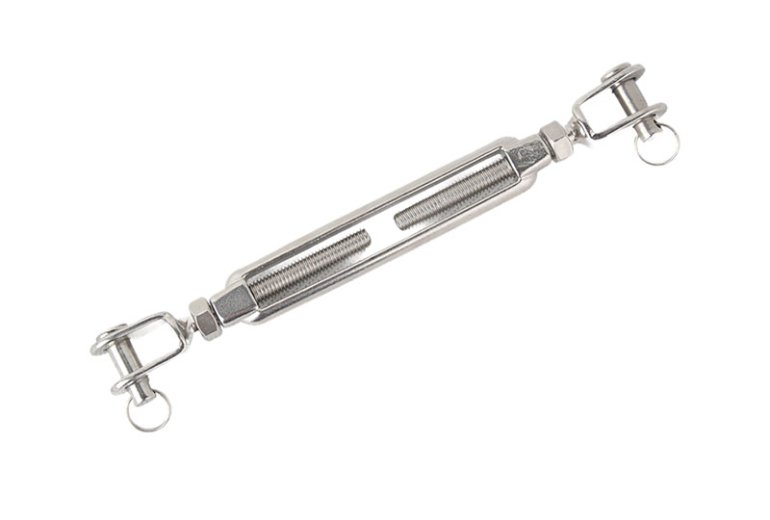

Comfortable Design 316 Stainless Steel Marine Hardware Turnbuckle open body fork-fork Cable Railing Tensioner.
The GS8339 Turnbuckle open body fork-fork is engineered for precise and reliable wire rope adjustment. Its open body design exposes internal threads, allowing quick inspection and efficient tensioning. The dual fork ends provide secure and balanced load adjustment across a wide range of sizes (M4–M20), supporting load capacities from 340 kg to 8200 kg.

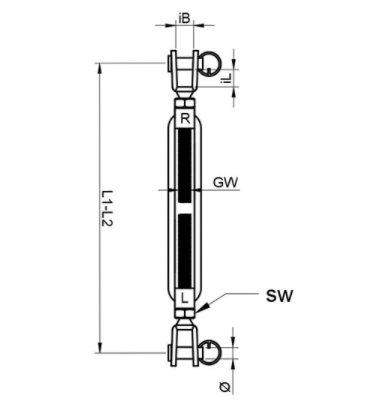

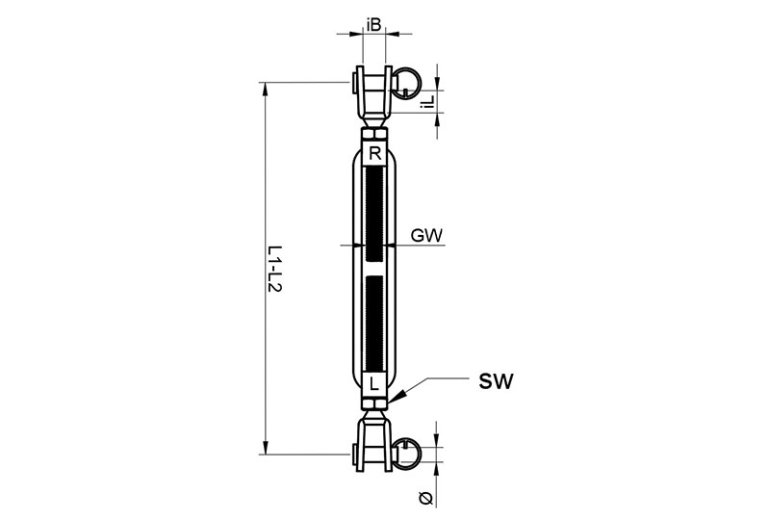

| GS 8339 | Turnbuckle open body fork-fork | ||||||||
 | Item-No. | GW | ø | L1 | L2 | iL | iB | Drive | BL KG |
| GS68339404 | M4 | 4 | 95 | 135 | 8 | 6.5 | SW7 | 340 | |
| GS68339405 | M5 | 5 | 165 | 120 | 10 | 6.5 | SW8 | 500 | |
| GS68339406 | M6 | 6 | 205 | 140 | 10 | 7.5 | SW10 | 600 | |
| GS68339408 | M8 | 8 | 270 | 180 | 11 | 11 | SW13 | 1100 | |
| GS68339410 | M10 | 9 | 330 | 220 | 19 | 12 | SW17 | 1750 | |
| GS68339412 | M12 | 12 | 460 | 300 | 20 | 14 | SW19 | 3200 | |
| GS68339414 | M14 | 12 | 500 | 325 | 22 | 15 | SW22 | 3600 | |
| GS68339416 | M16 | 16 | 570 | 375 | 25 | 17 | SW24 | 6800 | |
| GS68339420 | M20 | 19 | 680 | 450 | 31 | 20 | SW30 | 8200 | |
