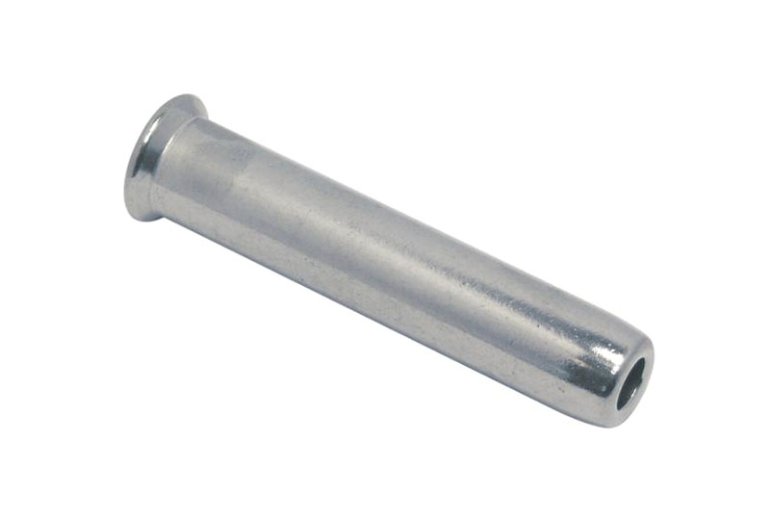

High Quality Stainless Steel 316 Mini-cone terminal.
The Mini-Cone Terminal features a tapered cone design and stainless steel construction, offering a perfect combination of compact size and dependable strength. Its smooth finish protects threads from snags while enhancing the appearance of railings, furniture, and lightweight architectural installations.

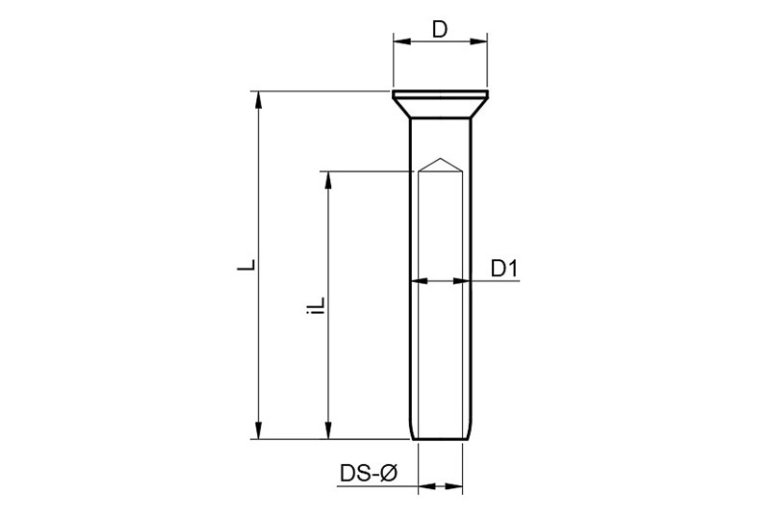

| GS 8459 | Mini-cone terminal | |||||
 | Item-No. | WR-ø | L | L1 | IL | D |
| GS6845942 | 2 | 27 | 2 | 20 | 8.5 | |
| GS68459425 | 2.5 | 30 | 2 | 23 | 8.5 | |
| GS6845943 | 3 | 34 | 2 | 27 | 8 | |
| GS6845944 | 4 | 43 | 2 | 35 | 9.5 | |
| GS6845945 | 5 | 50 | 3 | 40 | 13 | |
| GS6845946 | 6 | 64 | 3 | 50 | 16.5 | |
