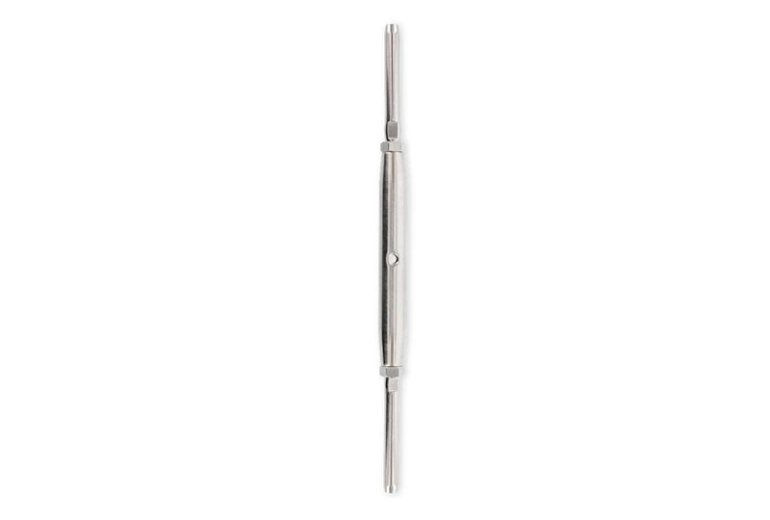

High Quality Rigging Screw 316 Stainless Steel Turnbuckle terminal-terminal.
| GS 815103 | Turnbuckle terminal-terminal | |||||||

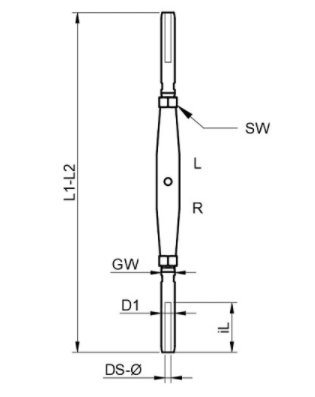

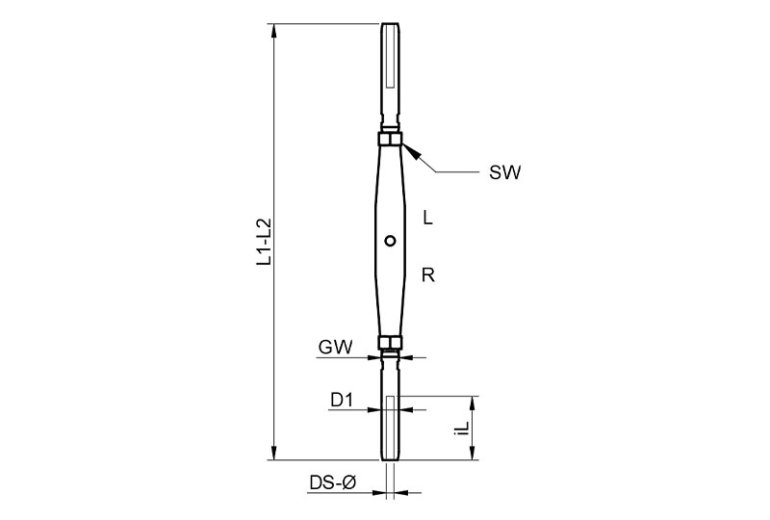

 | Item-No. | GW | WR-ø | L | L1 | iL | D1 | Drive |
| GS6815103405/2 | M5 | 2 | 240 | 180 | 32 | 5.5 | SW7 | |
| GS6815103405/25 | M5 | 2.5 | 240 | 180 | 32 | 5.5 | SW7 | |
| GS6815103406/3 | M6 | 3 | 275 | 205 | 39 | 6.4 | SW8 | |
| GS6815103406/4 | M6 | 4 | 300 | 230 | 45 | 7.5 | SW8 | |
| GS6815103408/4 | M8 | 4 | 310 | 235 | 45 | 7.5 | SW10 | |
| GS6815103408/5 | M8 | 5 | 325 | 250 | 52 | 9 | SW10 | |
| GS6815103410/5 | M10 | 5 | 360 | 270 | 52 | 9 | SW13 | |
| GS6815103410/6 | M10 | 6 | 390 | 300 | 64 | 12.6 | SW13 | |
| GS6815103412/6 | M12 | 6 | 445 | 330 | 64 | 12.6 | SW17 | |
| GS6815103412/8 | M12 | 8 | 480 | 365 | 80 | 16 | SW17 | |
| GS6815103416/8 | M16 | 8 | 550 | 410 | 80 | 16 | SW22 | |
