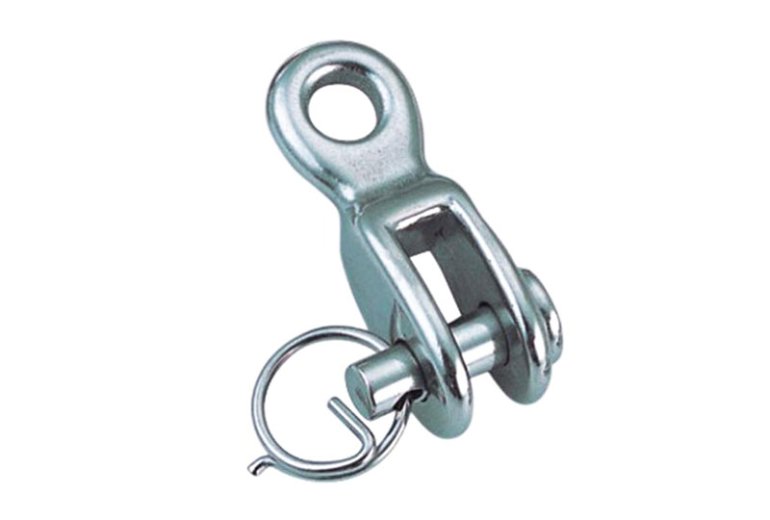

Stainless Steel 316 Marine WIRE ROPE Rigging Toggle fork-eye Rigging Screw Yacht Boat Hardware.
The GS68278 Toggle Fork-Eye has a pivoting fork that automatically aligns under load, reducing stress on cables and slings for safer, smoother operation. The toggle mechanism allows for quick attachment to cables, chains, or rigging systems without special tools, saving time on assembly and maintenance.

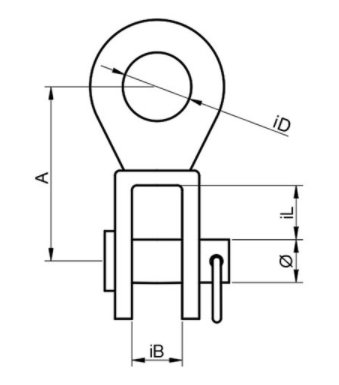

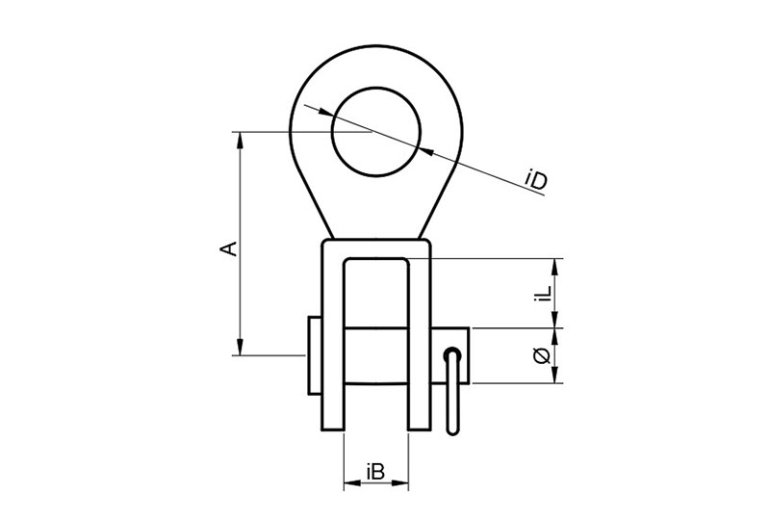

| GS 8278 | Toggle fork-eye | ||||||
 | Item-No. | ø | iD | iL | iB | A | BL KG |
| GS68278405 | 5.2 | 5.5 | 7 | 6 | 22 | 900 | |
| GS68278406 | 6.3 | 6.6 | 9 | 7 | 27 | 1100 | |
| GS68278408 | 8.3 | 8.5 | 10 | 10 | 31 | 2200 | |
| GS68278410 | 9.3 | 10 | 12 | 12 | 36 | 2700 | |
| GS68278412 | 12.4 | 13 | 17 | 13 | 50 | 4900 | |
| GS68278414 | 15 | 14.3 | 20 | 15 | 60 | 6800 | |
| GS68278416 | 17 | 17 | 29 | 14 | 80 | 7500 | |
