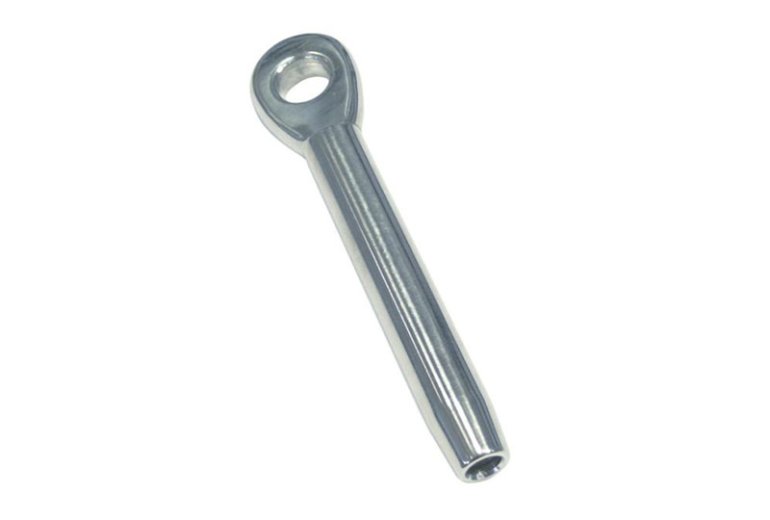

Hardware Rigging Cable Swage eye terminal Stainless Steel 316 Wire Rope Fitting Assemblies Connection Tensioner Marine Boat.

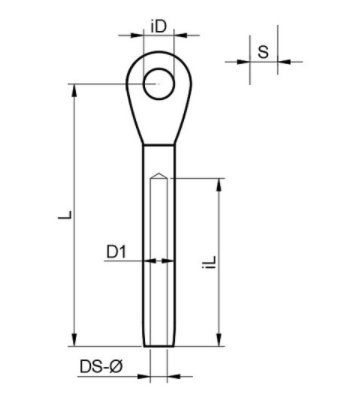

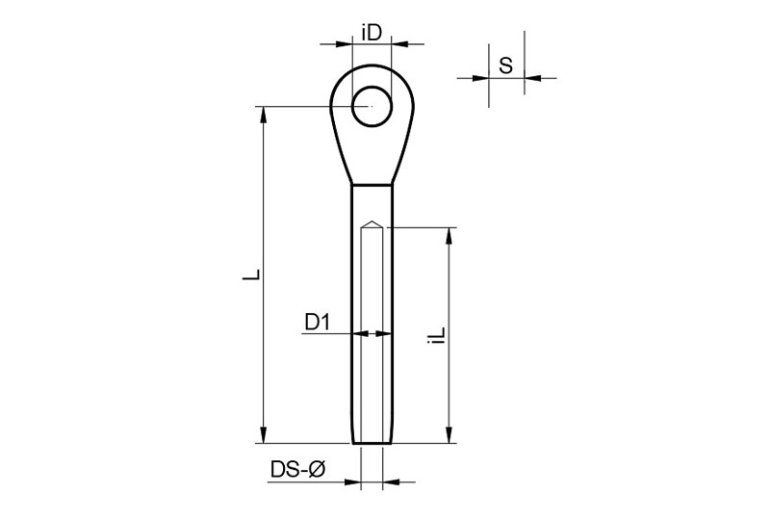

| GS 8281 | Eye terminal | ||||||
 | Item-No. | WR-ø | L1 | iL | iD | D1 | S |
| GS68281402 | 2 | 48 | 25 | 5.4 | 5.5 | 3 | |
| GS682814025 | 2.5 | 49 | 30 | 5.4 | 5.5 | 3 | |
| GS68281403 | 3 | 55 | 36 | 6.5 | 6.4 | 4 | |
| GS68281404 | 4 | 56 | 39 | 8.5 | 7.5 | 6 | |
| GS68281405 | 5 | 80 | 50 | 10.5 | 9 | 7 | |
| GS68281406 | 6 | 94 | 62 | 12.5 | 12.6 | 8 | |
| GS68281407 | 7 | 105 | 68 | 12.7 | 14.2 | 9 | |
| GS68281408 | 8 | 124 | 85 | 14.5 | 16 | 10 | |
| GS68281410 | 10 | 142 | 90 | 16.4 | 17.8 | 12 | |
| GS68281412 | 12 | 160 | 105 | 19.3 | 20 | 16 | |
