EU Type Stainless Steel 316 Turnbuckle eye-eye for Marine Rigging.

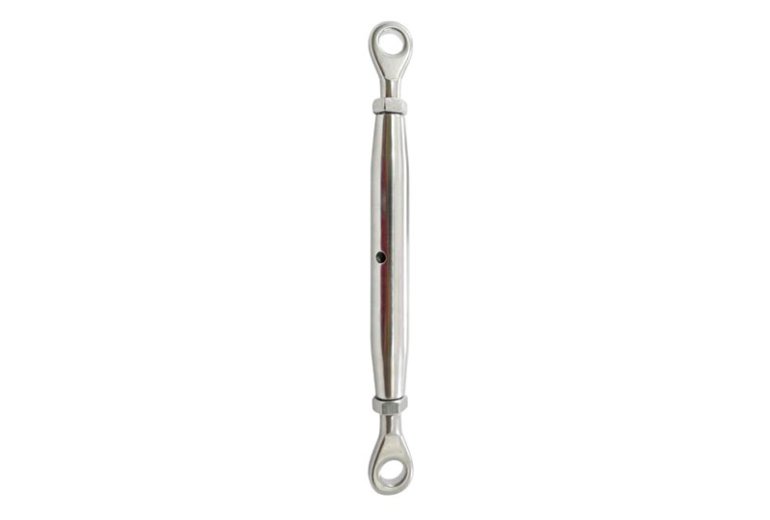

The GS6815037 Turnbuckle eye-eye is engineered for precision and durability in wire rope assemblies. Constructed from stainless steel, the turnbuckle resists corrosion and maintains consistent performance under demanding conditions. Its machined design ensures smooth adjustment and reliable operation over time.

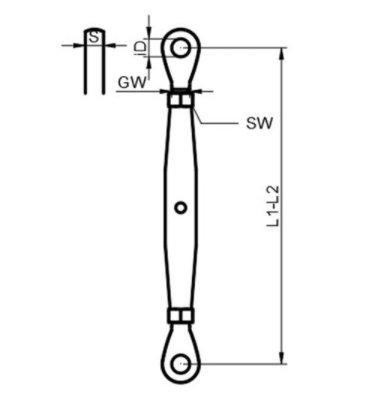

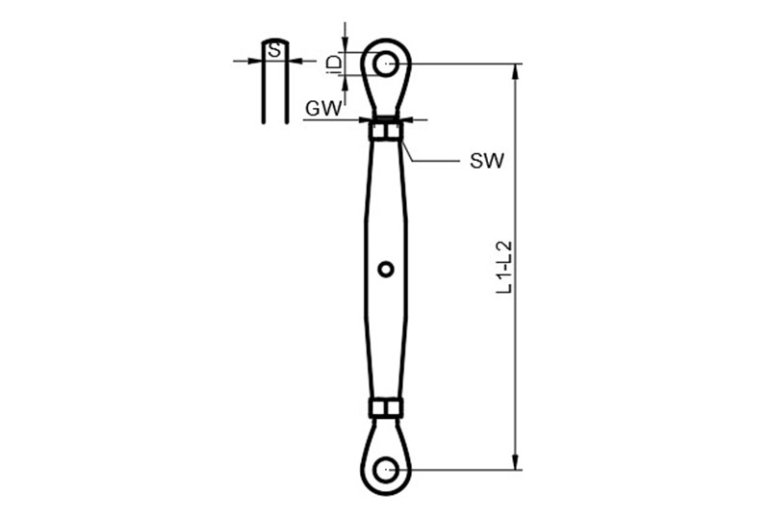

| GS 815037 | Turnbuckle eye-eye | |||||||
 | Item-No. | GW | iD | L1 | L2 | S | Drive | BL KG |
| GS6815037404 | M4 | 5.5 | 170 | 100 | 3 | SW7 | 480 | |
| GS6815037405 | M5 | 5.5 | 190 | 120 | 3 | SW7 | 630 | |
| GS6815037406 | M6 | 6.5 | 210 | 135 | 4 | SW8 | 910 | |
| GS6815037408 | M8 | 8.5 | 240 | 160 | 5 | SW10 | 1430 | |
| GS6815037410 | M10 | 10.5 | 280 | 190 | 6 | SW13 | 2410 | |
| GS6815037412 | M12 | 13 | 340 | 225 | 8 | SW17 | 3140 | |
| GS6815037414 | M14 | 13 | 380 | 250 | 9 | SW19 | 4320 | |
| GS6815037416 | M16 | 14.5 | 420 | 275 | 10 | SW22 | 5510 | |
| GS6815037420 | M20 | 19.5 | 480 | 330 | 15 | SW27 | 9900 | |
