Wholesale High Quality Rigging 316 Stainless Steel Turnbuckle .

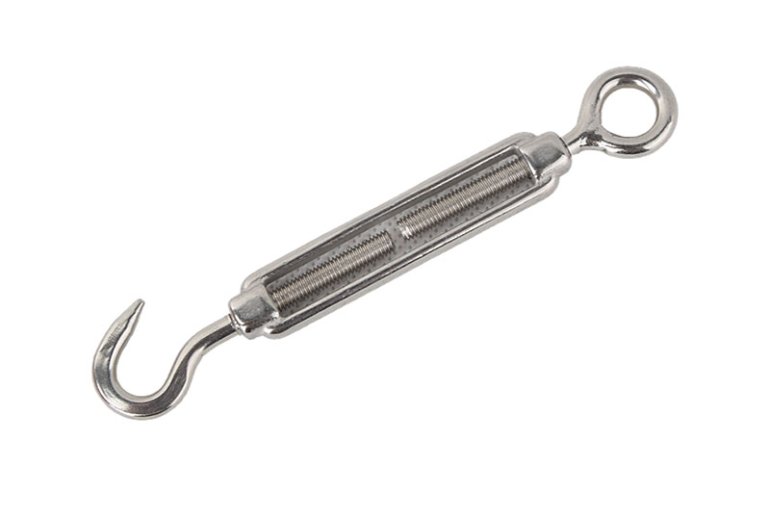

The Turnbuckle is designed for precise and durable wire rope adjustment. Available in various sizes and configurations, it allows balanced tensioning for marine, industrial, and lifting applications. Made from certified stainless steel, this turnbuckle is manufactured to high-quality standards to improve operational reliability.

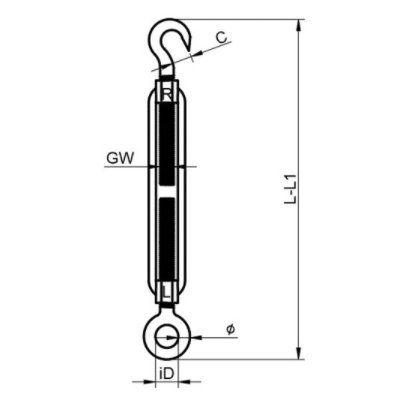

| GS 8246 | Turnbuckle | |||||||
 | Item-No. | GW | ø | L | L1 | iD | C | BL KGTyp A |
| GS682464*A*B*C03 | M3 | 2.7 | 130 | 90 | 5 | 5 | 50 | |
| GS682464*A*B*C04 | M4 | 3.5 | 135 | 95 | 6 | 6 | 300 | |
| GS682464*A*B*C05 | M5 | 4.4 | 165 | 110 | 8 | 7.5 | 550 | |
| GS682464*A*B*C06 | M6 | 5.3 | 210 | 145 | 10 | 9 | 750 | |
| GS682464*A*B*C08 | M8 | 7.1 | 280 | 190 | 14 | 12 | 1300 | |
| GS682464*A*B*C10 | M10 | 8.9 | 345 | 240 | 16 | 13 | 2000 | |
| GS682464*A*B*C12 | M12 | 10.8 | 455 | 300 | 18 | 14 | 2800 | |
| GS682464*A*B*C16 | M16 | 14.4 | 580 | 390 | 26 | 18 | 5200 | |
| GS682464*A*B*C20 | M20 | 18 | 680 | 460 | 30 | 20 | 8000 | |
| GS682464*A*B*C22 | M22 | 22 | 970 | 690 | 30 | 28 | 5630 | |
| GS682464*A*B*C24 | M24 | 25 | 1110 | 780 | 34 | 32 | 6590 | |
