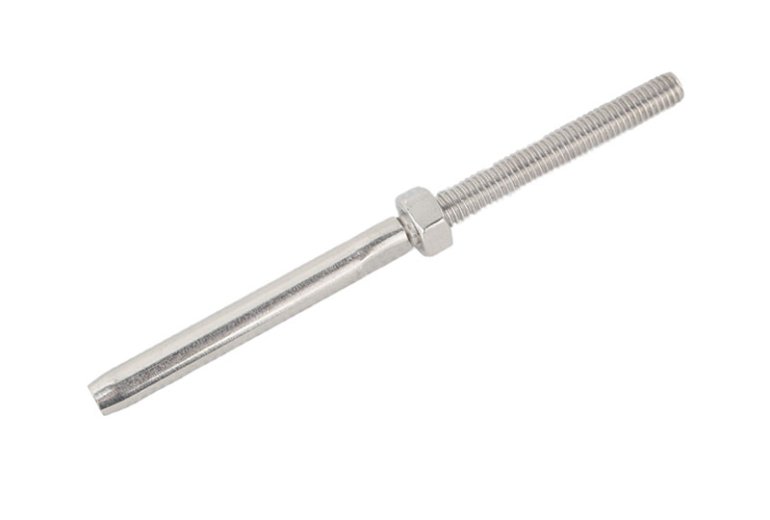

High Quality Rigging Stainless Steel 316 Cable Railing Marine Grade Terminal with right thread.
GS68307 Terminal with right thread delivers reliable output and enhanced operational control in industrial equipment. It guarantees performance, assists technicians during installations, upgrades system efficiency, and protects critical components.

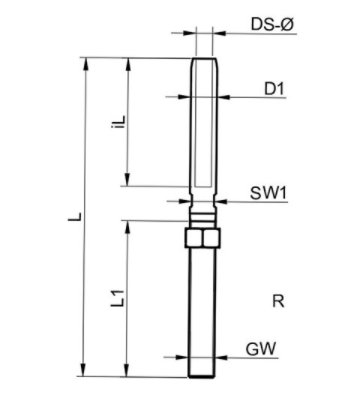

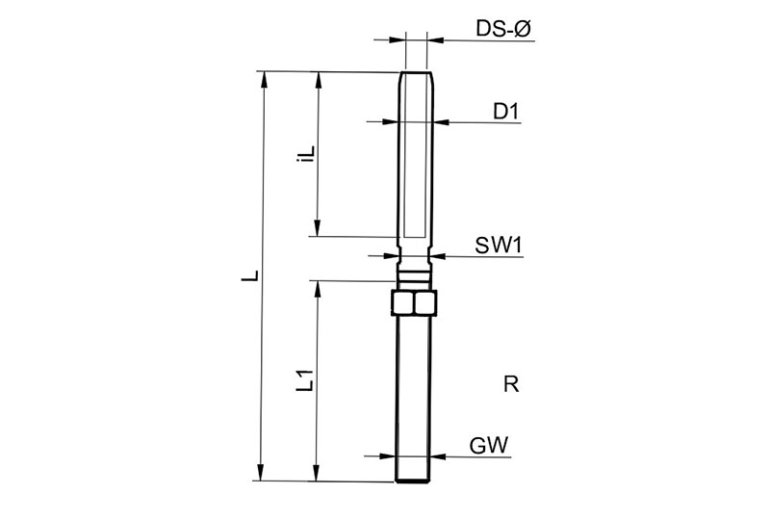

| GS 8307 | Terminal with right thread | ||||||||
 | Item-No. | GWWR-∅ | DS-∅ | L | L1 | iL | D1 | Drive | Drive 2 |
| GS68307404/2 | M4 | 2 | 73 | 38 | 24 | 4.8 | SW7 | SW3 | |
| GS68307405/2 | M5 | 2 | 86 | 40 | 32 | 5.5 | SW8 | SW4 | |
| GS68307405/25 | M5 | 2.5 | 86 | 40 | 32 | 5.5 | SW8 | SW4 | |
| GS68307406/3 | M6 | 3 | 100 | 48 | 39 | 6.4 | SW10 | SW5 | |
| GS68307406/4 | M6 | 4 | 110 | 48 | 45 | 7.5 | SW10 | SW6 | |
| GS68307408/4 | M8 | 4 | 117 | 57 | 45 | 7.5 | SW13 | SW6 | |
| GS68307408/5 | M8 | 5 | 124 | 57 | 52 | 9 | SW13 | SW7 | |
| GS68307410/5 | M10 | 5 | 130 | 63 | 52 | 9 | SW17 | SW7 | |
| GS68307410/6 | M10 | 6 | 145 | 63 | 64 | 12.6 | SW17 | SW10 | |
| GS68307412/6 | M12 | 6 | 162 | 80 | 64 | 12.6 | SW19 | SW10 | |
| GS68307412/8 | M12 | 8 | 180 | 80 | 80 | 16 | SW19 | SW14 | |
| GS68307414/7 | M14 | 7 | 180 | 90 | 70 | 14.2 | SW22 | SW12 | |
| GS68307416/8 | M16 | 8 | 200 | 100 | 80 | 16 | SW24 | SW14 | |
| GS68307416/10 | M16 | 10 | 210 | 100 | 90 | 17.8 | SW24 | SW15 | |
| GS68307420/10 | M20 | 10 | 230 | 119 | 90 | 17.8 | SW30 | SW15 | |
| GS68307420/12 | M20 | 12 | 245 | 120 | 105 | 20 | SW30 | SW17 | |
| GS68307422/14 | M22 | 14 | 308 | 140 | 140 | 25 | SW32 | SW22 | |
| GS68307424/16 | M24 | 16 | 363 | 170 | 160 | 28 | SW36 | SW24 | |
