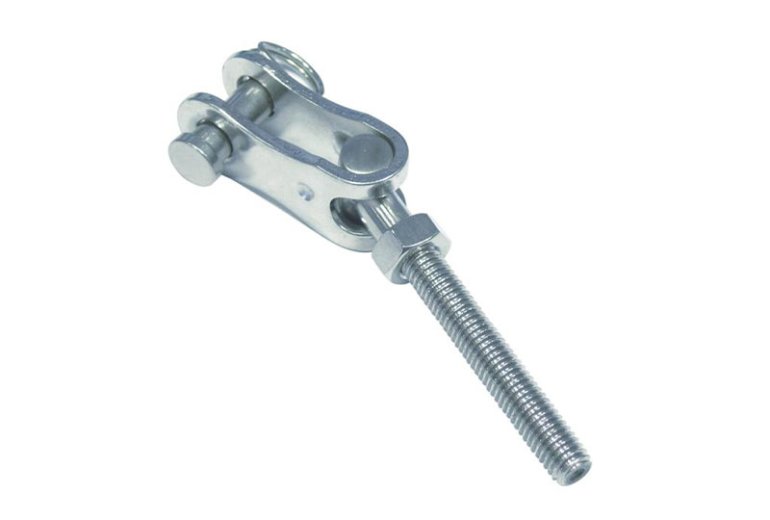

High Polished AISI316 Stainless Steel Toggle with right thread.
The GS68486 includes a right-hand threaded pivot, which locks securely under tension and prevents unintentional loosening, ensuring stable load handling in demanding applications. Ideal for marine, industrial, and lifting applications, this toggle delivers dependable pivoting connections where traditional toggles may loosen under dynamic loads.

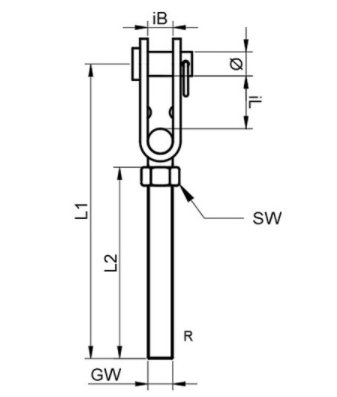

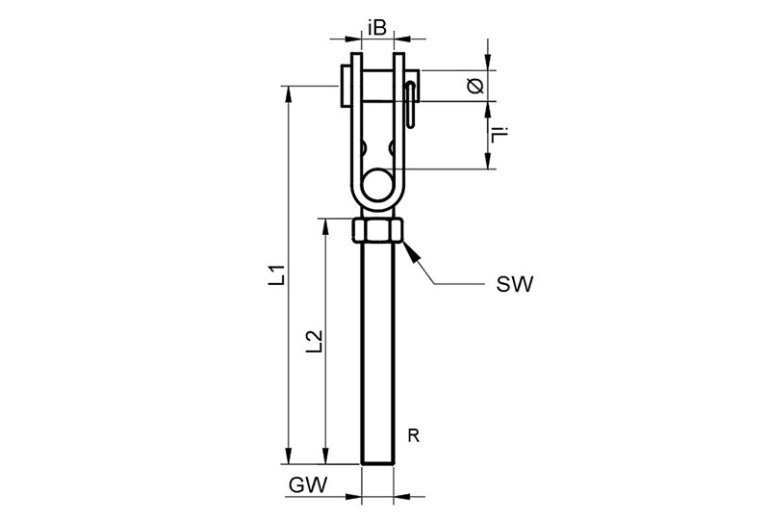

| GS 8486 | Toggle with right thread | |||||||
 | Item-No. | GW | ø | L1 | L2 | iL | iB | Drive |
| GS68486405 | M5 | 5 | 62 | 42 | 13 | 6 | SW8 | |
| GS68486406 | M6 | 6 | 77 | 48 | 15 | 7 | SW10 | |
| GS68486408 | M8 | 8 | 94 | 56 | 20 | 10 | SW13 | |
| GS68486410 | M10 | 9 | 115 | 67 | 25 | 12 | SW17 | |
| GS68486412 | M12 | 12 | 136 | 81 | 30 | 13 | SW19 | |
| GS68486416 | M16 | 16 | 163 | 103 | 40 | 17 | SW24 | |
| GS68486420 | M20 | 19 | 198 | 115 | 45 | 20 | SW30 | |
