316 Rigging Screw Stainless Steel Turnbuckle body similar to DIN 1478.
The GS68418 Turnbuckle Body is engineered to meet DIN 1478 standards, ensuring precise tension control for heavy-duty industrial applications. Its threaded design allows secure adjustment for rigging, machinery, or structural frameworks, giving engineers and maintenance teams a reliable connector they can trust.

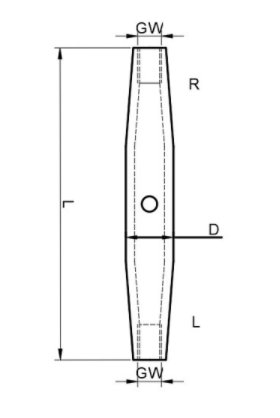

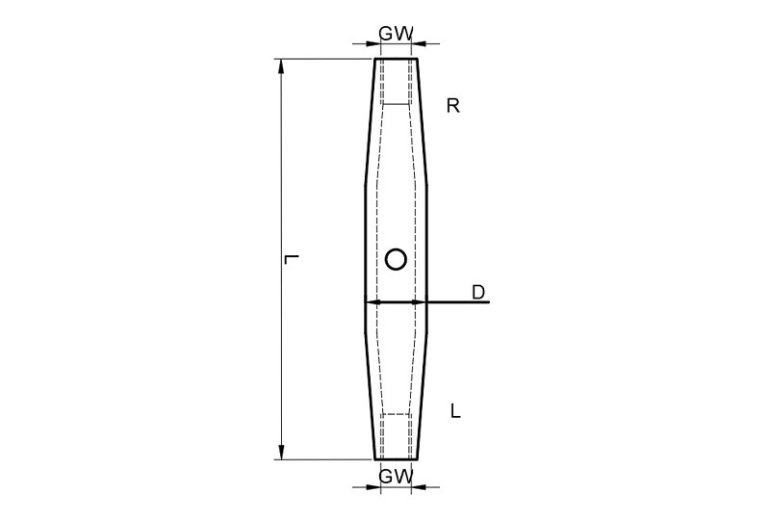

| GS 8418 | Turnbuckle body similar to DIN 1478 | ||||
 | Item-No. | GW | L | D | iD |
| GS68418404 | M4 | 70 | 7 | 2.5 | |
| GS68418405 | M5 | 80 | 8 | 2.5 | |
| GS68418406 | M6 | 95 | 10 | 3.2 | |
| GS68418408 | M8 | 105 | 13 | 4.2 | |
| GS68418410 | M10 | 125 | 17 | 5 | |
| GS68418412 | M12 | 150 | 21 | 6 | |
| GS68418414 | M14 | 165 | 21 | 7 | |
| GS68418416 | M16 | 190 | 26.5 | 8 | |
| GS68418420 | M20 | 210 | 33.5 | 9 | |
